CCG1000-20TJ Automatic Piston Filling Machine

1. Introduction

CCG1000-20TJ Automatic Piston Filling Machine is the latest generation of improved volume filling machine, which is suitable for the packaging of various water agents and high viscosity products. Whole machine is of in-line structure, driven by servo motor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, human-machine interface, and the whole machine is easy to operate. The whole machine adopts arc frame, which is beautiful and generous. High precision electronic scale automatic weighing data transmission system is selected to make dose adjustment more convenient and quick.

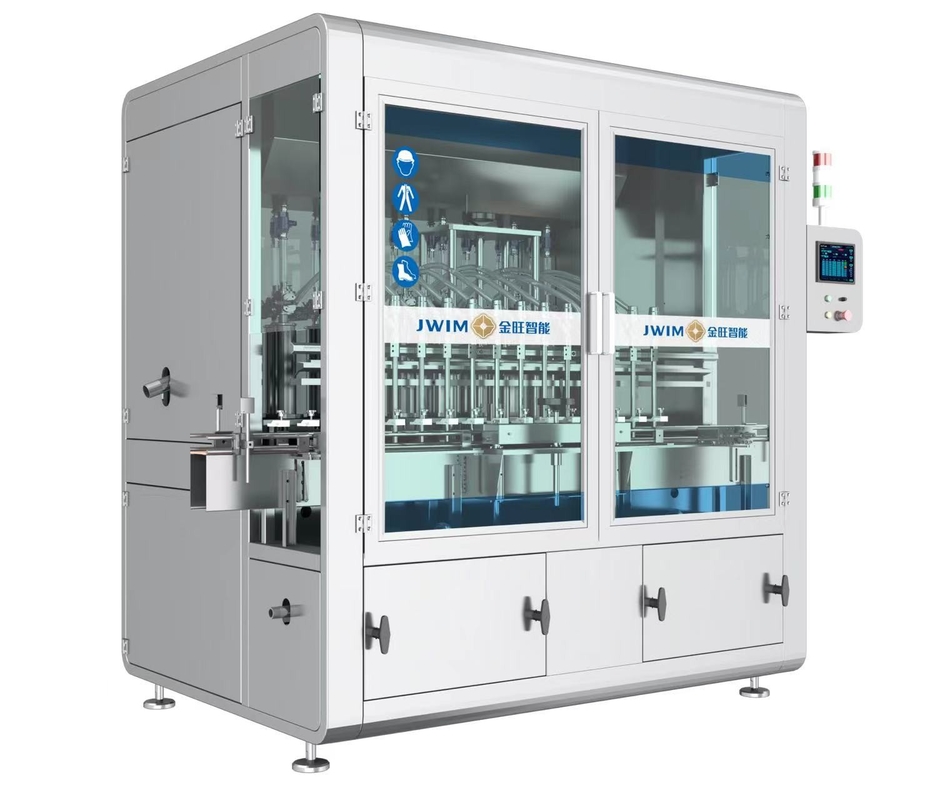

High Capacity 20-Nozzle 50-1000ml Automatic Piston Filling Machine 0



2.Technical Parameters

1 Capacity

100ml: ≤7000 BPH 1000ml:≤4000 BPH

*Capacity differs from product, drum and product characteristic.

2 Applicable Bottle Size

Round Bottle: Φ40-95mm Height:80-230mm



3 Filling Volume

50-1000ml

*Filling range differs from the product characteristic and product feeding.

4 Filling Precision

±1g (50-200ml) ±1.5g (200-500ml)

±2g (500-1000ml)

*Precision differs from product, drum and product characteristic.

5 Product Feeding Height 2300mm
6 Product Feeding Diameter DN40
7 Filling Nozzle Diameter Φ18mm
8 Min Opening Diameter ≥Φ22mm
9 Air Pressure 0.6-0.8MPa
10 Power Source ~380V 50Hz/3.7KW
11 External Dimension 2835×1490×2480mm(L×W×H)
12 Weight About 1400kg



3.Allocation

No. Name Brand
1 PLC Schneider
2 HMI Schneider
3 Inverter Schneider
4 Servo System Schneider
5 Counting Sensor SICK
6 Proximity Switch Schneider
7 Power Switch Schneider
8 Pressure Gauge SMC
9 Cylinder FTEC
10 Solenoid Valve FTEC
11 Button Schneider
12 Alarm Light Schneider
13 Circuit Breaker Schneider

4.Features


4.1 It is widely used for the automatic filling from 50-1000ml in agrochemical, chemical, fertilizer, personal care products, oil and other related industries.

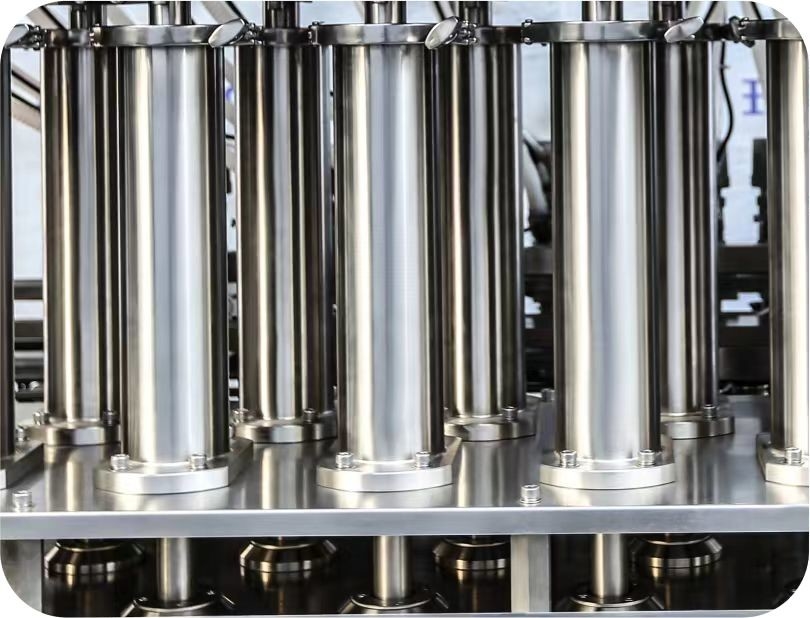

4.2The filling unit uses piston off structure, it can completely discharge the product in the tank, effectively avoid the cross-contamination. This structure also makes the sealing ring changing easier.High Capacity 20-Nozzle 50-1000ml Automatic Piston Filling Machine 1



4.3The latest PTFE sealing parts improves the wear resistance and service life, reducing the maintenance cost.



4.4The filling system adopts a dedicated three-way angle seat valve, stainless steel valve body, strong corrosion resistance, durability, and German industrial standard. It has the advantages of simple structure, stable performance, reliable sealing, no product leakage for a long time, saving maintenance costs.



4.5 It uses high standard professional filling valve with fast filling speed and high filling accuracy. The valve body uses SUS, with good corrosion resistance, durability and long service life. The special bottom structure and sealing design can achieve no leakage. Filling valve adopts bottom-sealing structure to avoid residue in connection thread and valve sealing part, which is easy for cleaning and can effectively reduce residue.

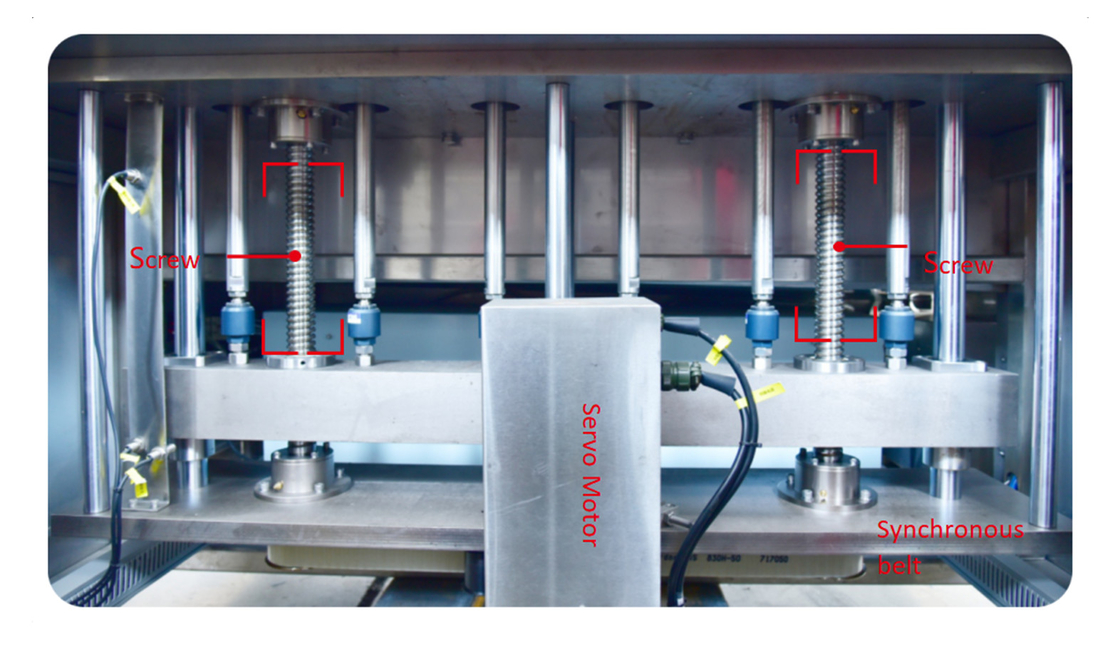

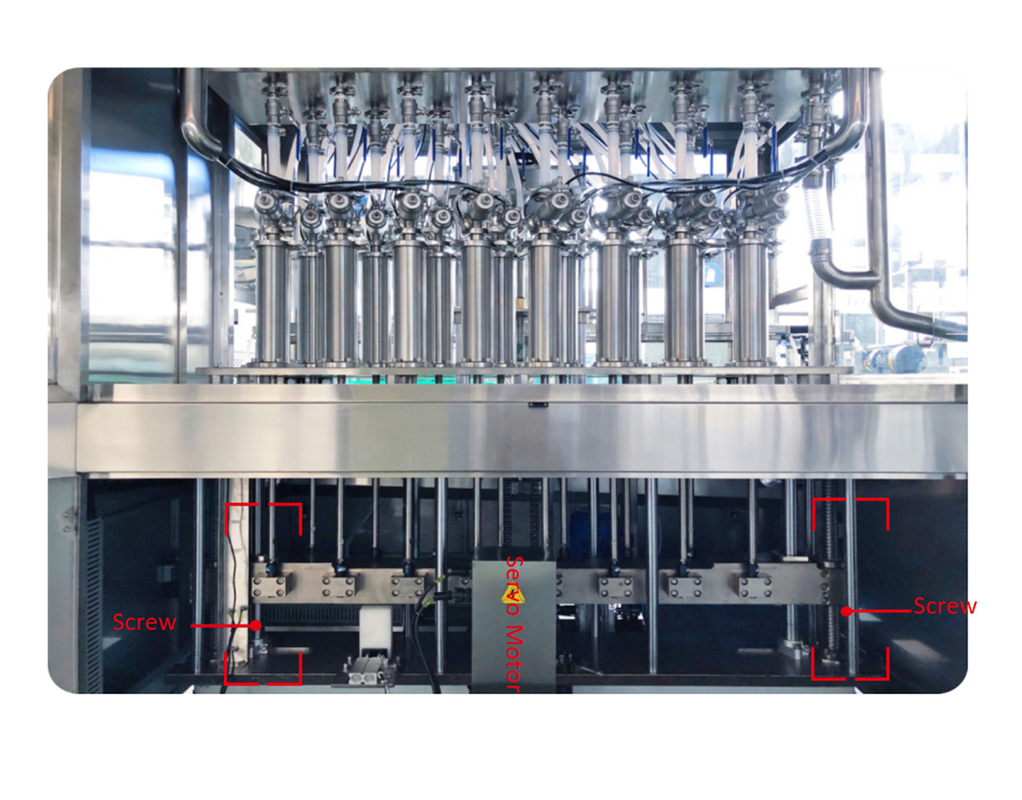

4.6 Jinwang uses PLC control, servo motor drives the synchronous belt+stable operated double screw rod lifting structure to make sure the high precision of piston movement and filling.



4.7The motor drives the filling nozzles. Filling nozzle height can be adjusted in the touch screen.


4.8Filling head quick adjustment and equipped with calibration mark, adjustment without tools, convenient and fast. Air pipe and photoelectric are labeled with name, which is convenient to maintain and repair.


4.9Electric scale weight feedback system, volume adjusting can be done by pressing one key in the touch screen. (Optional function)



4.10 The whole machine uses the frame of Stainless Steel 304 that with perfect anti-corrosion effect. The stainless steel cover and the toughened glass door prevent the dirty air during filling from polluting the environment. Meanwhile, dimension Φ120mm exhaust outlet reserved on the top of the filling lancers which connected to the induced draught system for exhausting gas.
