Place of Origin:
China
Brand Name:
JWIM
Certification:
CE，ISO
Model Number:
DXD-240A
DXD-240A Fully Automatic Horizontal Roll Film Bagging Machine
1. Introduction
This equipment contains motorized film release, bag forming, bag bottom sealing, vertical sealing, servo bag pulling, shearing, bag opening and filling, bag transferring, bag top sealing and other mechanisms. The coordinated action of each mechanism is completed by the cams on the spindle driven by the motor, and the position signal is fed back by the encoder on the spindle. Under the programmable control of PLC, it realizes the function of film rolling→bag forming→bag making→filling→sealing→finished product conveying, and finally cartoning or box loading is carried out by manpower.
The machine has reasonable design and novel appearance, adopts standard stripe sealing, and the replacement of filling machine can realize automatic filling of various materials such as powder, granule, suspending agent, emulsifying oil, water agent and so on on this machine. The whole machine is made of SUS304 stainless steel, which has good anticorrosive effect on the corrosive materials. Plexiglass cover prevents dust from leaking out, which is more environmentally friendly and pollution-free.
2. Technical Parameters
| 1 | production capacity |
Single bag: 50g: 30-43 bags/min; 100g: 30-40 bags/min Double bags/double single bags: 80-120 bags/minute *Actual production capacity varies depending on product size, packaging material, material characteristics, etc. |
| 2 | Applicable bag type |
Single bag, double bags, double single bag
|
| 3 | Package Size |
Single bag: 80×120mm(minimum);180×210mm(maximum) double bags/double single bag: 80×120mm(minimum); 120×180mm(maximum)
|
| 4 | Packing capacity |
Maximum filling volume: 200ml *The filling capacity range varies depending on the physical properties of the raw materials and the feeding device.
|
| 5 | Filling accuracy |
±0.5g (50g); ±1g (100-200g); *Measuring accuracy varies depending on material characteristics, filling volume and feeding device.
|
| 6 | Roll film size |
Inner diameter: Φ70-80mm Outer diameter: ≤Φ500mm
|
| 7 | Dust removal pipe diameter | Φ59mm |
| 8 | Power/power | ~380V 50Hz/6KW |
| 9 | Air consumption | 700L/min |
| 10 | Equipment size | 4165×960×1550mm(L×W×H) |
| 11 | Total Weight | about2000Kg |
| NO | NAME | BRAND |
| 1 | PLC | Schneider |
| 2 | Touchscreen | Schneider |
| 3 | Frequency converter | Schneider |
| 4 | Server system | Schneider |
| 5 | Color mark detector | SUNX Japanese Vision |
| 6 | Switching power supply | Schneider |
| 7 | Vacuum generator | SMC |
| 8 | Cooling fan | SUNON |
| 9 | Encoder | OMRON |
| 10 | Button | Schneider |
| 11 | Breaker | Schneider |
Efficient, safe and environmentally friendly6.1 a simpler and more efficient operating system and an integrated intelligent system, making your operation simpler and completed with one click.
6.1.1 Temperature control integrated module: Monitor temperature changes in real time, and the operation is clear at a glance. This effectively controls the heat sealing mechanism to ensure sealing reliability and make the packaged products easy to use and look good.
6.1.2 Servo bag pulling system, specification replacement can be completed with one-click input, resulting in less packaging material loss.
6.1.3 Weighing feedback system:Measurement adjustment is at your fingertips, reducing material waste.(This feature is optional)
6.2 A safer production environment
6.2.1.The main configuration of the whole machine adopts Schneider Electric system (PLC programmable controller, human-machine interface, servo system, frequency converter, switching power supply, etc.), which is safer, more reliable, efficient and environmentally friendly, and brings you more economical energy consumption.
6.2.2 Multiple safety protections (Panasonic color code detection, Japanese SMC vacuum generator, air source processor with air pressure detection, power phase sequence protector) ensure the stability and reliability of equipment operation to the greatest extent.
6.3 In order to prevent the ironing block parts on the equipment from becoming sticky, bag-sticking, material sticking, etc. after long-term use, the surfaces of the bottom seal, vertical seal, top seal and other parts are all made of Special spraying, to avoid the above situation from happening.
6.3.1 The whole machine frame is made of SUS304 stainless steelProcessed and manufactured, it has excellent corrosion resistance; the plexiglass outer cover prevents dust leakage and is more environmentally friendly and pollution-free.
6.3.2 This machine officeThe connecting rod parts are made of SUS304 stainless steelCasting, strong firmness and no deformation. Other manufacturers generally use welded connecting rods, which are easy to break and deform.
6.4 Versatility of filling device
Connectors for filling devices such as powders, water agents, viscosity agents, and granules are reserved on the equipment. The software is also designed to be reserved. When replacing the filling device, the user only needs to install the connectors and call the function on the touch screen. Ready to use.
6.5 central operating control
The central control box is installed in the middle of the equipment. It is beautiful, elegant and convenient for operation and maintenance. Workers do not need to run back and forth during operation, which can effectively improve work efficiency. It is also equipped with an independent operation button box, which has functions such as dose fine-tuning and debugging jog, making the operation more convenient.
6.6 In the form of double scissors,Increase production capacity, double the original production capacity for single bags.(This feature is optional)
6.7.Film changing and bagging device
When a roll of film is used up, there is no need to pull out the remaining film roll on the equipment. You only need to bond it to a new film roll on this device to continue starting the machine, reducing packaging material loss.(This feature is optional)

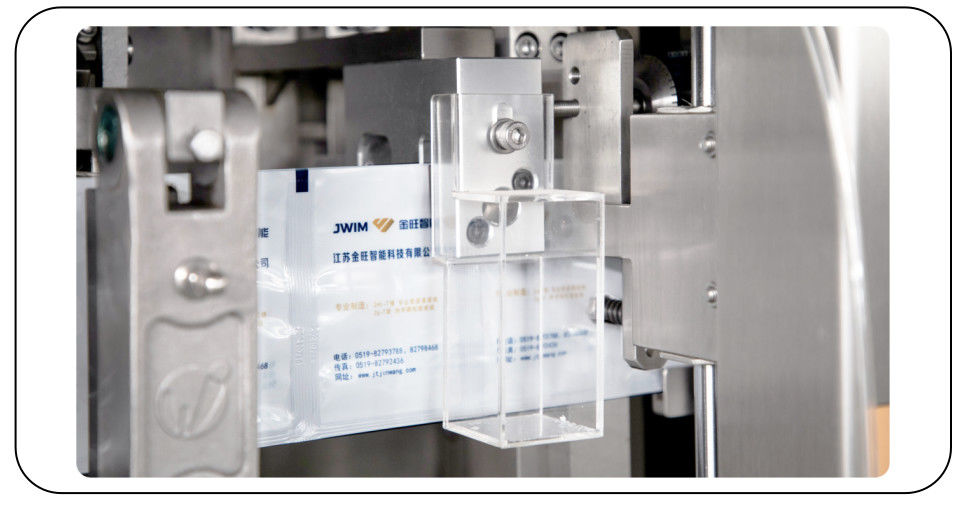

6.8Diamond tear
It adopts an independent tearing mechanism, and the cylinder drives the cutter to perform reciprocating motion to achieve the tearing effect, which is easy to tear and beautiful. Its use effect far exceeds that of ironing block tearing, and there is a debris collection device on the tearing device.(This feature is optional)
