Place of Origin:
China
Brand Name:
JWIM
Certification:
CE，ISO
Model Number:
CFH-G2
CFH-G2 Fully Automatic Rotary Bottled Powder Packaging Machine
1. Introduction
CFH-G2 fully automatic rotary bottled powder packaging machine adopts a rotary follow-up filling structure and has high production capacity. The whole machine is made of SUS304 stainless steel, which has excellent anti-corrosion properties. The filling part is controlled by servo motor with high precision. The filling process is carried out under the control of PLC program, and all operations are completed on the touch screen.

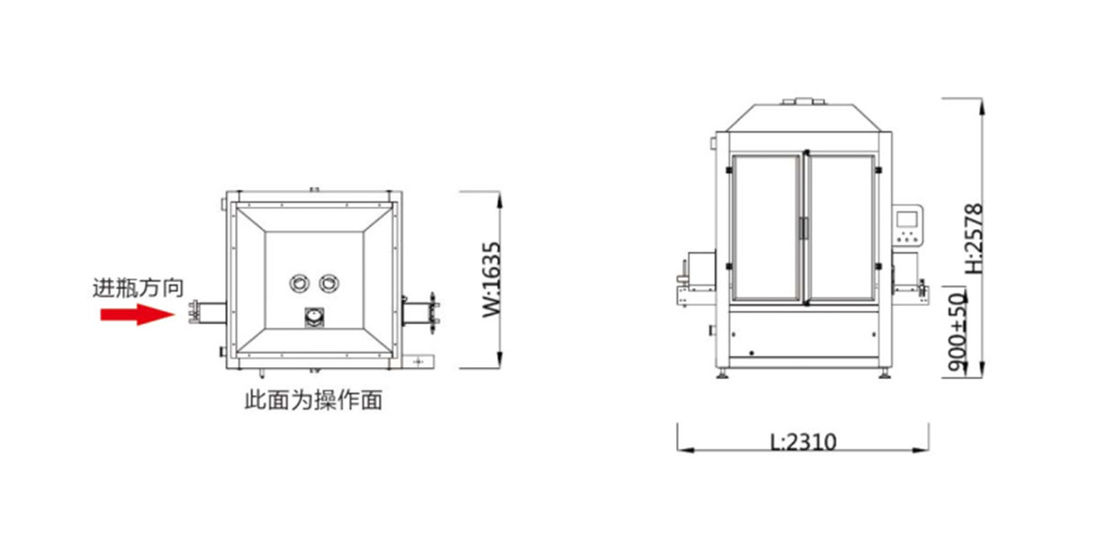

2. Equipment dimension
| 1 | filling speed | ≤1500 bottles/hour (take 500g as an example) |
| 2 | Applicable bottle type |
Round bottle: diameter φ40-95mm, bottle height 80-230mm *Different bottle diameters require different molds |
| 3 | Measuring accuracy | ±1%*Measuring accuracy varies depending on material characteristics, filling volume and feeding device |
| 4 | Power/power | Three-phase AC380V 50Hz/2KW |
| 5 | Air pressure | 0.6-0.8MPa |
| 6 | Dimensions | 2310×1635×2578mm(L×W×H) |
| 7 | weight | About 800Kg |
4.Electrical configuration
| SN | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touchscreen | Schneider |
| 3 | Frequency converter | Schneider |
| 4 | Counting photoelectric | SICK |
| 5 | Switching power supply | Schneider |
| 6 | Pressure Switch | SMC |
| 7 | The electromagnetic valve | FTEC/AirTAC |
5.Equipment advantages
5.1 Adopt intermittent filling structure:Filling 1 - dust removal - filling 2 - dust removal 2; fast production capacity, stable operation, and can effectively reduce dust in the filling area
5.2 The excluding frame part of this machine is sealed with stainless steel frame and glass. The supporting blanking and dust removal pipe can be connected with the dust removal pipe to suck away the dust during blanking to reduce dust in the production environment.
5.3 The whole machine electronic control system adopts French Schneider configuration, integrated electronic control system, more stable, reliable, safe and low energy consumption.
