Place of Origin:
Changzhou, China
Brand Name:
JWIM
Certification:
CE, CO, ISO9001
Model Number:
FX-6AS

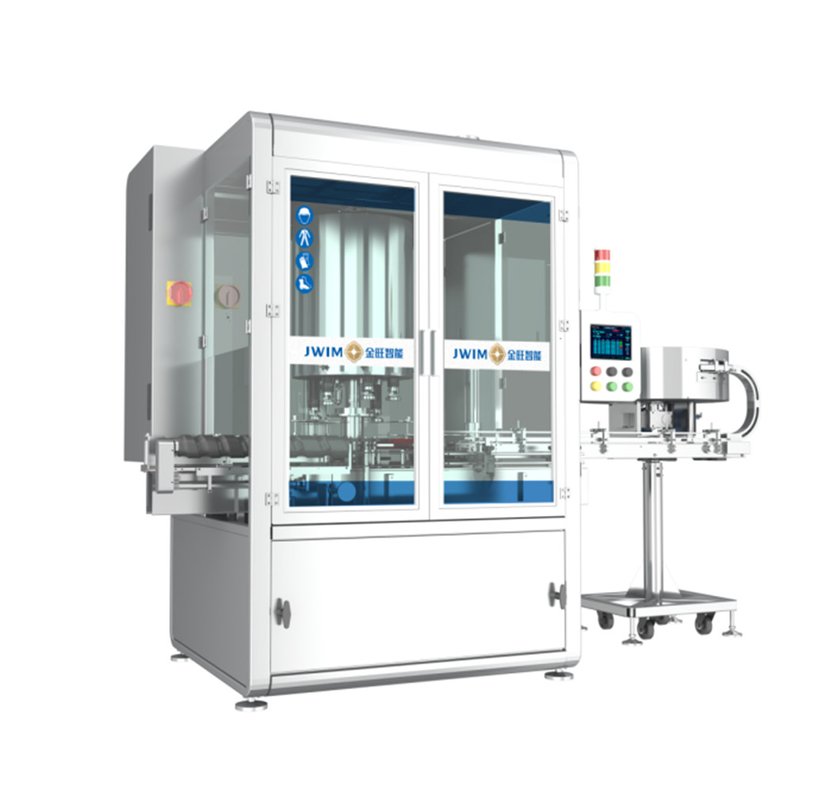

80ml-1L Automatic Capping Machine 6000BPH Rotary Rotary Packaging Machine
1. Introduction of Automatic Capping Machine

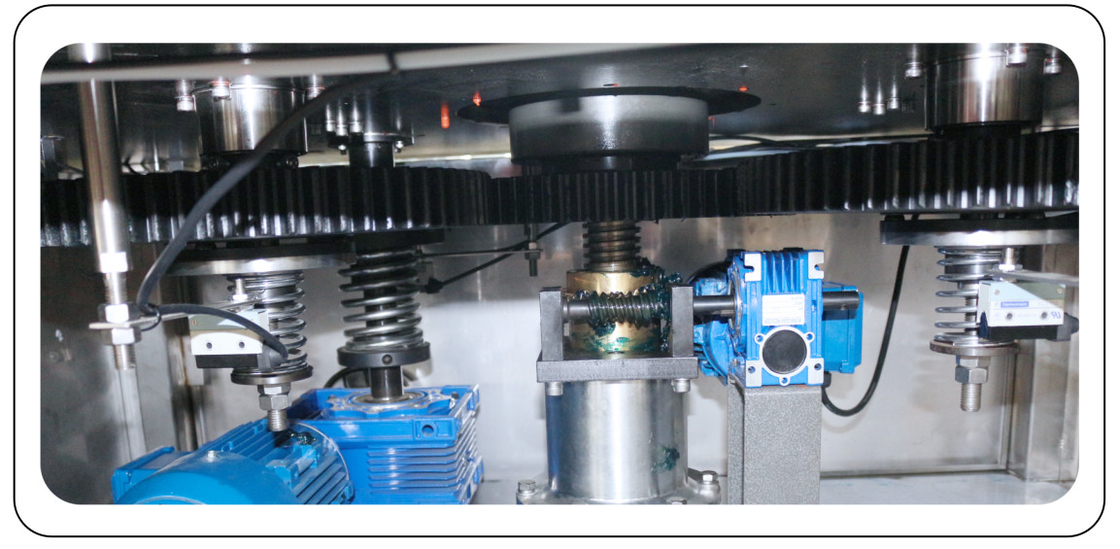

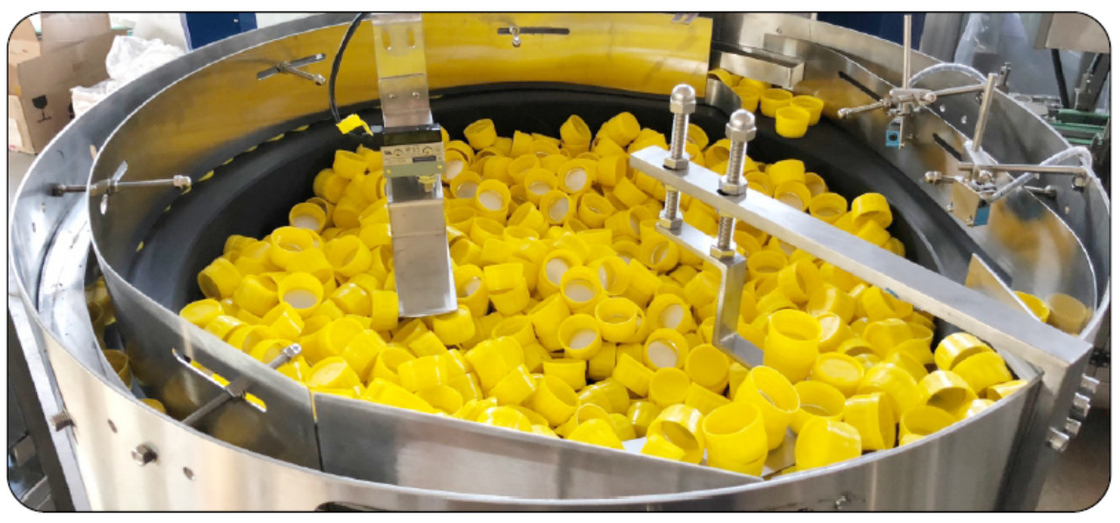

With 6 mechanical hands, the model is suitable for multi-geometry containers. It dispatches caps at a fast speed without any cap reversed. Supplying cap system and mechanical hands work together in phase. When the cap is tightened, bottle and cap standstill relatively, and the clutch separates immediately so that able and not apt to be damaged.

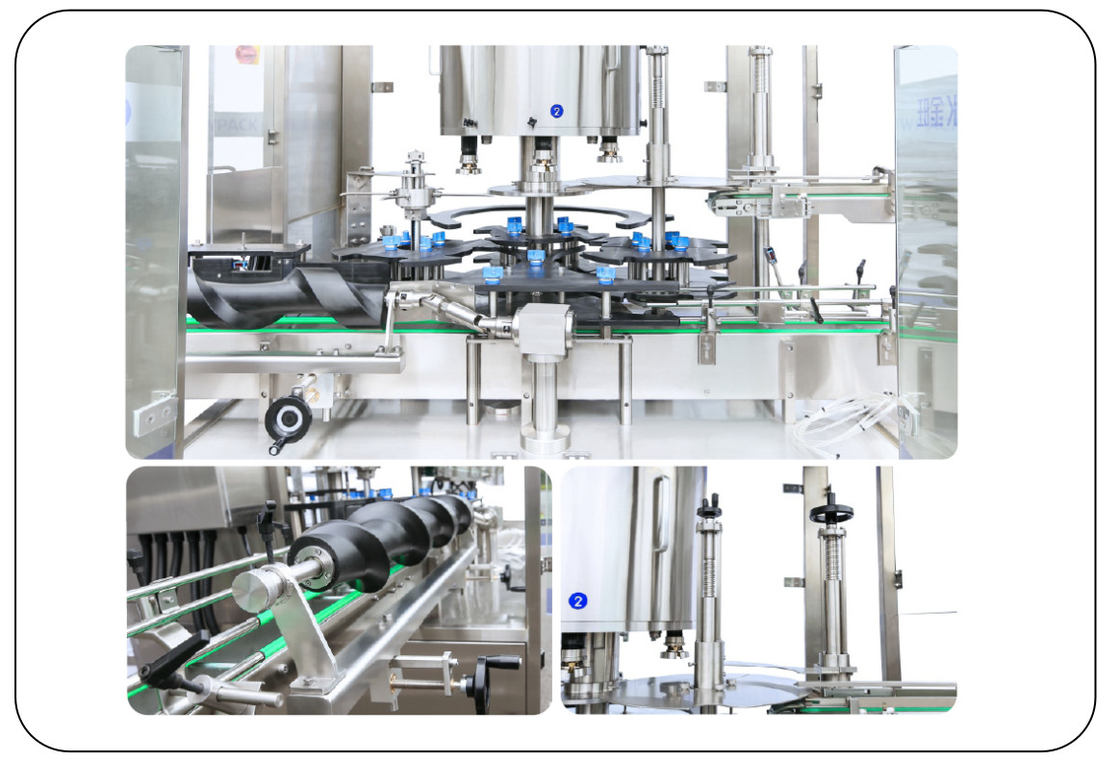

The rotary capping structure will not make scratches to the bottles and caps during operation. France Schneider PLC and touch screen control can make the operation and adjustment easier.
2. Application Range
It is widely used for 80ml-1000ml automatic capping in agrochemical, fertilizer, oil, daily personal care industries.
3. Main Technical Parameters of FX-6AS Automatic Rotary Capping Machine
Capacity |
≤6000 Bottles/hour |
Applicable Bottle Diameter | 40-90mm |
Applicable Cap Diameter | 20-55mm |
Capping Head Number | 6 |
Capping Qualification Rate | ≥99.9% |
Air Pressure | 0.6-0.8MPA |
Power Source | 380V, 50HZ |
Power | 4KW |
External Dimension | 2135*1360*2400mm (L*W*H) |
Weight | 2000Kg |
4. Allocations
5. Advantages of Rotary Capper
a. High qualification rate with 100%, adjustable torque.

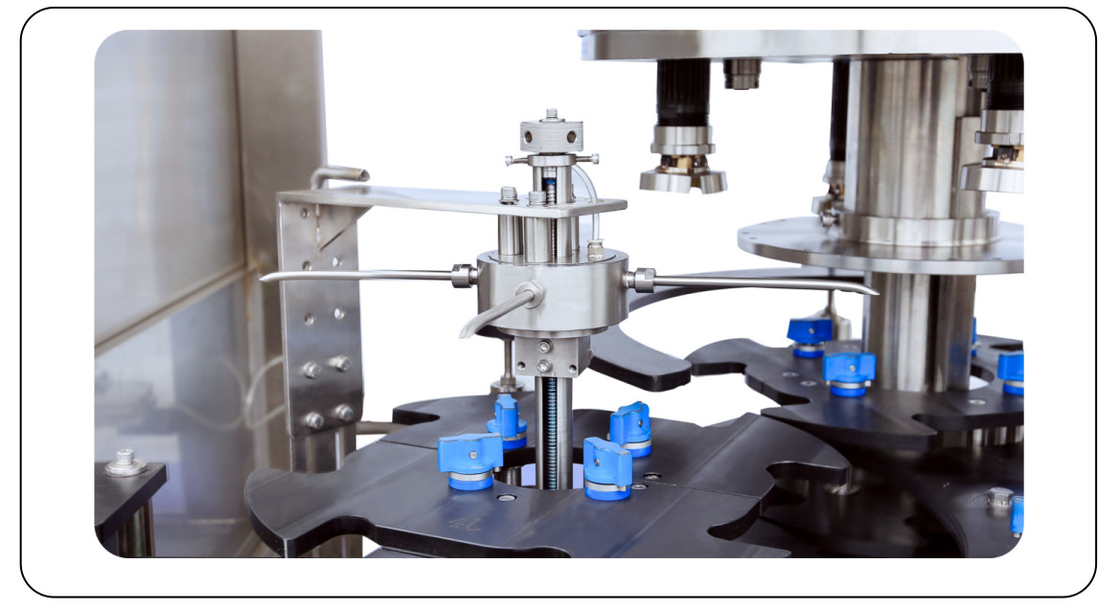

b. Wide application range: Caps with safety ring and hat cap can be used with changing different capping heads.
c. Quick changeover format design without changing any tools.

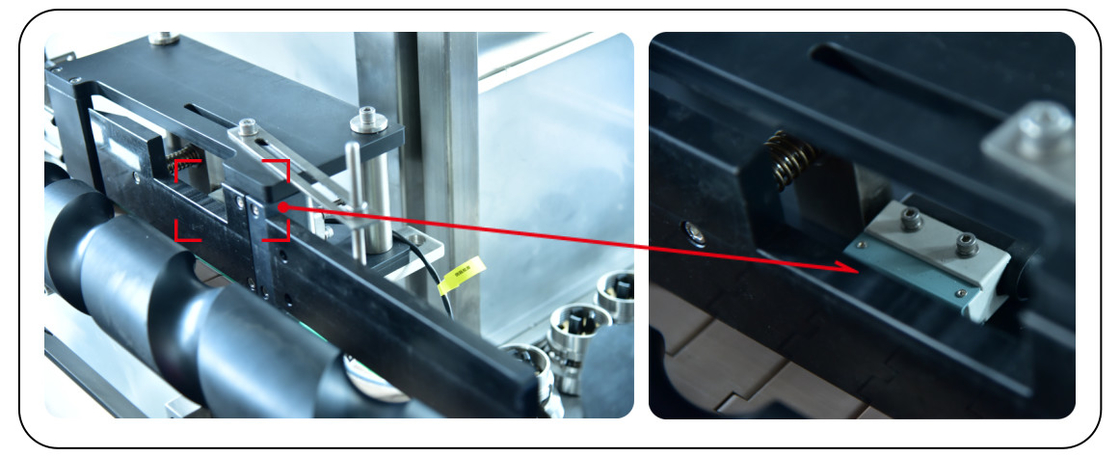

d. All transmission parts have clutch limit protection switch, if there is any stuck or main shaft overload, the machine will automatically stop to avoid any damage to the machine.
