Place of Origin:
Changzhou, China
Brand Name:
JWIM
Certification:
CE. ISO9001
Model Number:
FX-4AS

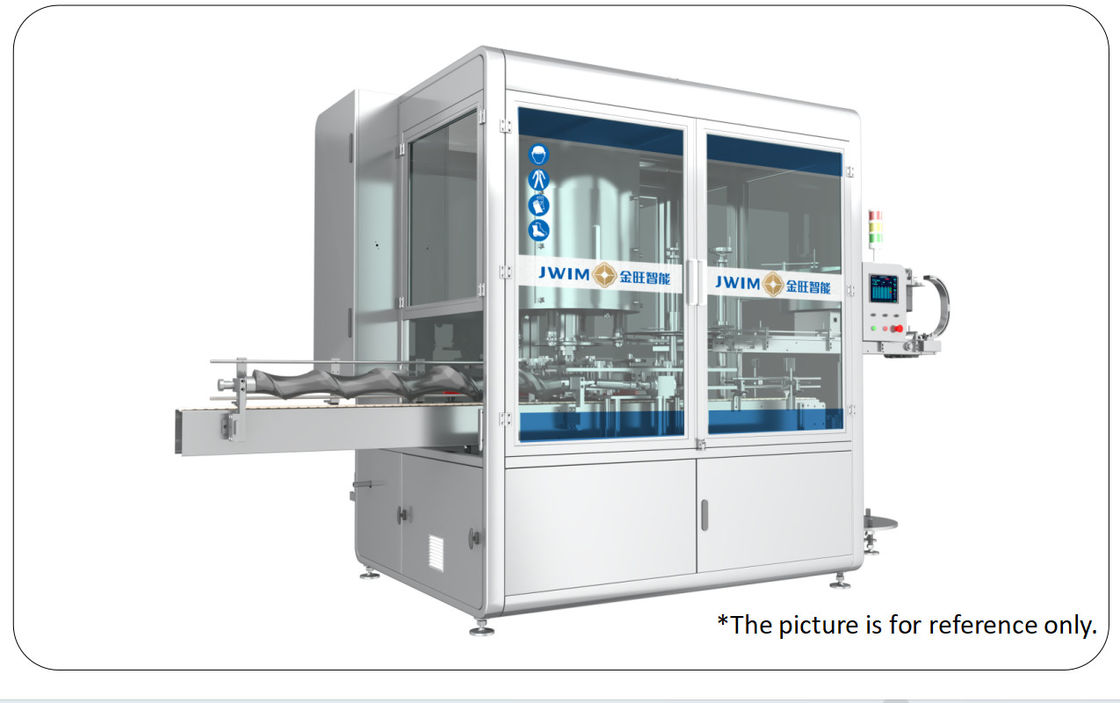

FX-4AS Automatic Rotary Capping Machine
1.Introduction
This machine integrates the barrel inlet, cap management, capping and barrel outlet, adopts the grasping cap positioning capping, and the whole machine is of rotary structure. In the process of capping, there is no injury to the barrel, no injury to the cap phenomenon, high capping efficiency, high pass rate, smooth operation, wide range of use, and can be comparable with similar foreign products.
The machine is suitable for all kinds of glass or plastic drums of various specifications of automatic screwing of the outer cap, using the cap grabber to grab the cap conveyed by the scraping plate, in the process of drum rotation to complete the screwing of the outer cap. The whole machine adopts PLC control, touch human-machine interface, convenient and intuitive operation.
2. Technical Parameters
| 1 | Production capacity |
≤4000BPH *Actual capacity varies according to product size, package material, material characteristics, etc. |
| 2 | Qualification rate | 99.9% |
| 3 | Applicable barrel type |
Drum diameter Φ(60-150)*(180-350)mm Flat barrel(90×60) -(280×180)mm |
| 4 | Lid specification | Diameter Φ25-60mm, Lid height 20-40mm |
| 5 | Number of capping heads | 4PCS |
| 6 | Air pressure | 0.6-0.8MPa |
| 7 | Electricity source | ~380V 50Hz |
| 8 | Power | 2.53KW |
| 9 | Weight | 2000Kg |
| 10 | Overall Dimension | 3390×1550×2380mm(L×W×H) |
3. Allocation
| No. | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touch Screens | Schneider |
| 3 | Inverter | Schneider |
| 4 | Counting Optoelectronics | SICK |
| 5 | Switching Power Supply | Schneider |
| 6 | Pressure switch | SMC |
| 7 | Pneumatic Cylinder | FTEC/AIRTAC |
| 8 | Solenoid Valve | FTEC |
| 9 | Buttons | Schneider |
| 10 | Breaker | Schneider |

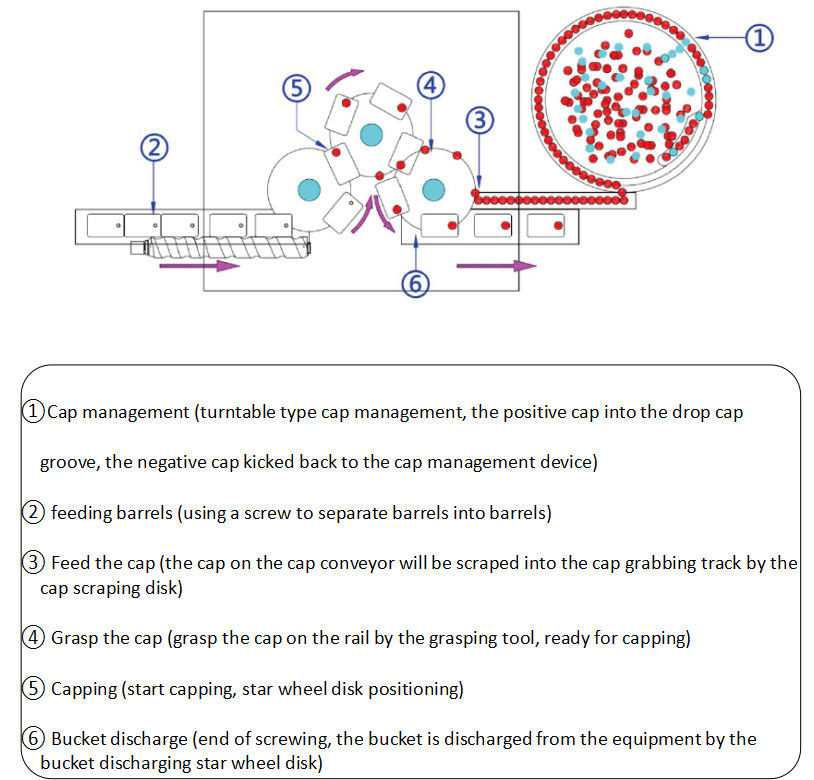

4.Working Process
5.Features:
5.1 Widely used in agrochemical fine chemicals, daily chemicals, fertilizers, oil and other industries 1-5L barrels of automatic capping.
5.2 High qualified rate of capping, adjustable torque, convenient and fast, good stability.
5.3 Good versatility: for different types of caps, the corresponding screw cap gripping head is selected, also applicable to anti-theft caps, straw hat caps.
5.4 Quick-fit mold design, mold replacement without tools, and according to the different barrel type mold engraving logo, replace the barrel specifications more convenient and quick, barrel type switching time is short.
5.5 Based on safe production
①capping machine is equipped with inverted bottle, stuck bottle detection switch, when there is an inverted barrel or stuck barrel equipment automatic shutdown, so as to avoid damage to the twist or star wheel.
②All drives are equipped with clutch limit protection switch, in and out of the bottle star wheel jam bucket or spindle torque overload automatic clutch and shutdown alarm, to protect the equipment from damage and improve service life. Other similar capping machines on the market do not have this function.
5.6 Humanized design: reference to the world's top capping machine manufacturers AROL (Krones capping special supporting business) design structure, supporting the automatic motor lift (touch screen or pointing buttons) + semi-automatic handle lifting and adjusting mode, adjusting the specifications conveniently and quickly. Currently on the market similar capping machine either can only be manually adjusted, no automatic lifting function or the use of triangular belt drive, not power can not be manually lifted, the adjustment is more cumbersome.
5.7 Nitrogen filling function can be added before the cap is screwed, and the reserved pipeline can be connected with the customer's nitrogen source. (This function is optional.)
5.8 Photoelectricity detecting cap management system, simple and stable adjustment, high qualification rate. Extra-large size of the cap stretcher, more cap storage capacity, more stable cap stretcher.
5.9 The whole machine electronic control system adopts French Schneider configuration, integrated electronic control system is more stable and reliable, safe and green, low energy consumption
6.Support and Services:
Our technical support and services for the Capping Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.
If you ever have any questions or concerns about the Capping Machine, our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.
7.Packing and Shipping:
The Capping Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.
