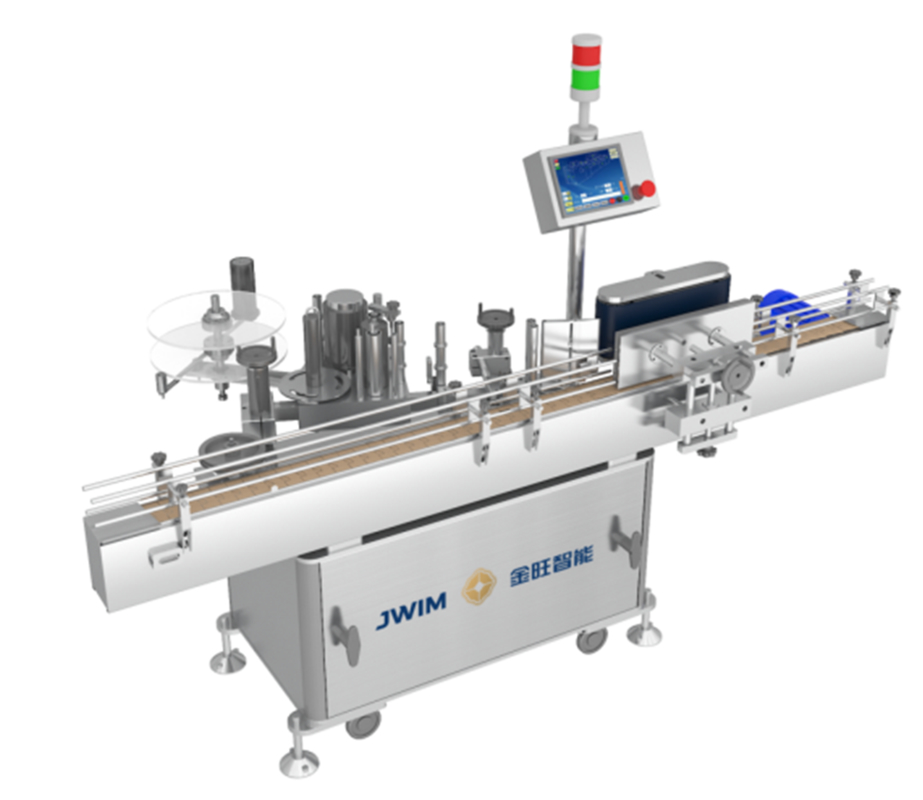

Tn-150 Auto High-Speed Labeling Machine (7000BPH) – Intelligent Multi-Industry Solution

1.Introduction
TN-150 intelligent self-adhesive labeling machine adopts programmable control, touch human-machine interface, servo-driven labeling, the whole machine is easy to operate, intuitive, and has a fault display function.
It is suitable for automatic labeling of self-adhesive labels of various round containers.

2.Machine Dimension

3.Technical Parameters

4.Electrical Configuration

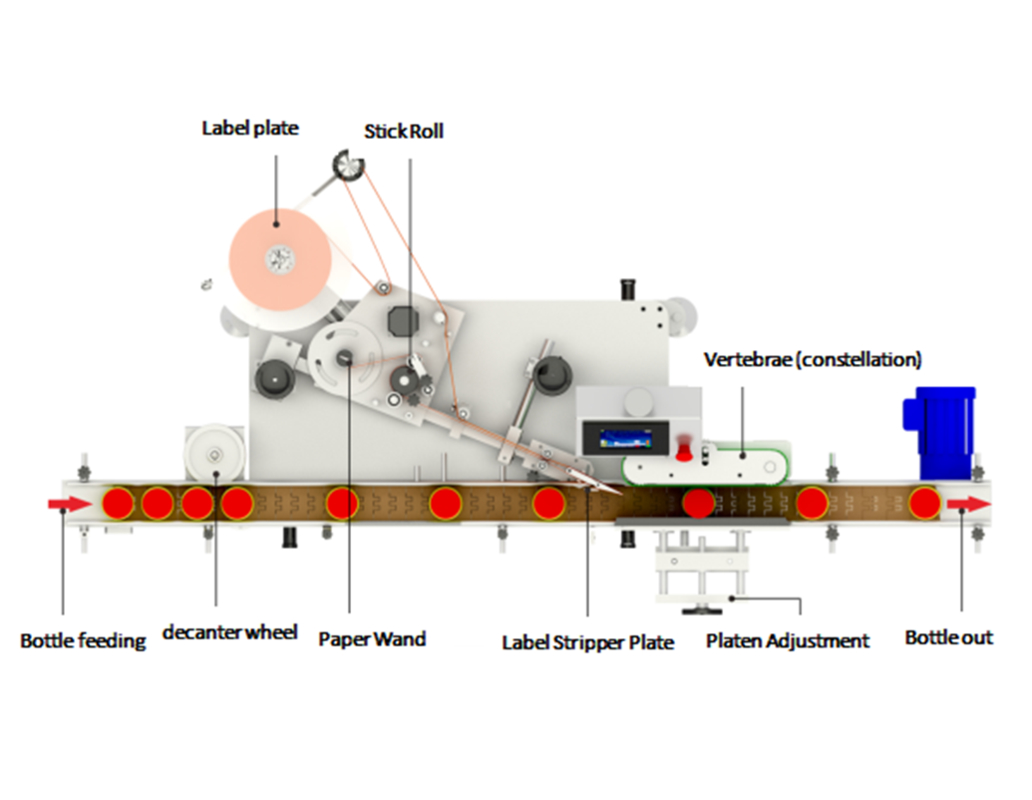

5.Working Process
Bottle feeding--Split BottleRoll--out labeling--Bottle with label passes through rolling label--Out of the bottle--Finish labeling

6.Advantage

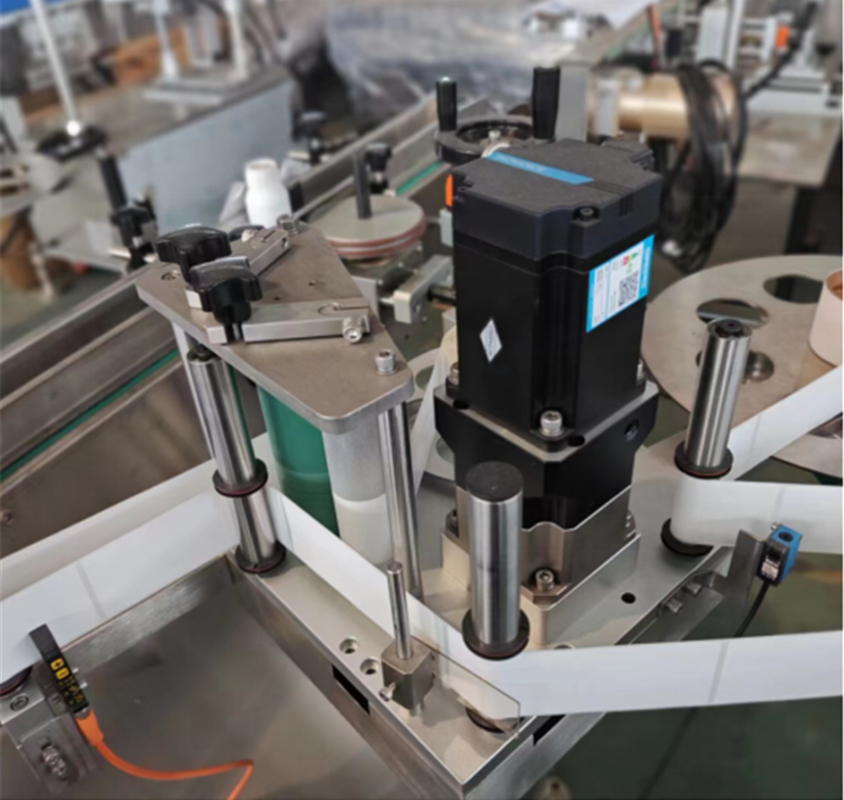

6.1 Servo motor + reducer drive labeling mechanism, supporting double buckle paper pressure mechanism, improve the stability of labeling.

6.2 The label feeder adopts wear-resistant rubber produced by special process, made of drive roller structure: excellent friction, non-slip characteristics to ensure the lasting stability of the label feeding function.

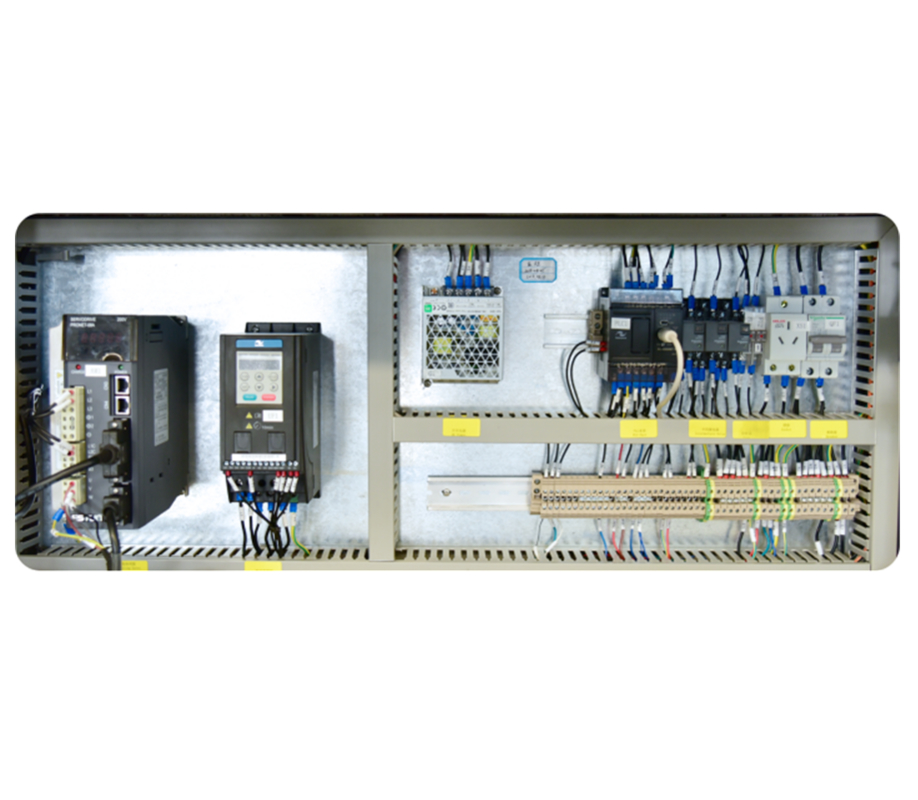

6.3 The whole machine electronic control system adopts domestic famous brand, integrated electronic control system, more economical and applicable.

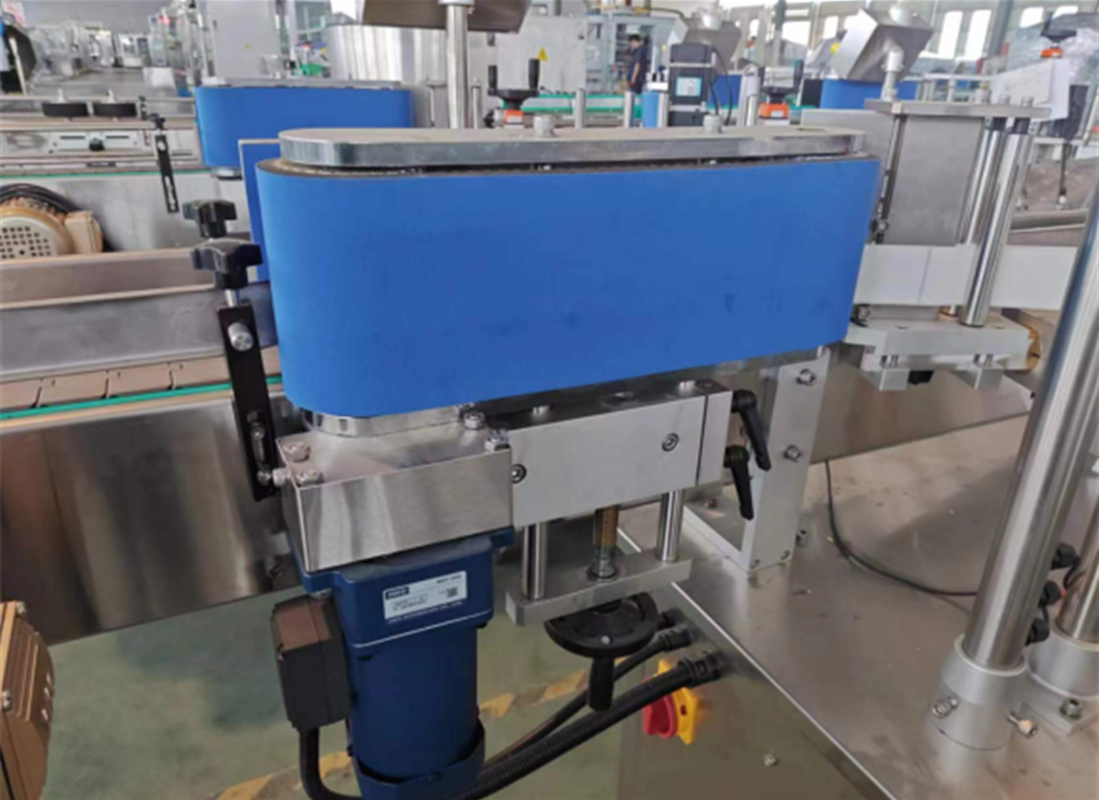

6.4 The independent motor controls the speed of rolling label, which is easy to adjust and saves adjustment time.

6.5 Adopting single bottle dividing wheel structure, making the spacing of bottles to be labeled more accurate and consistent.

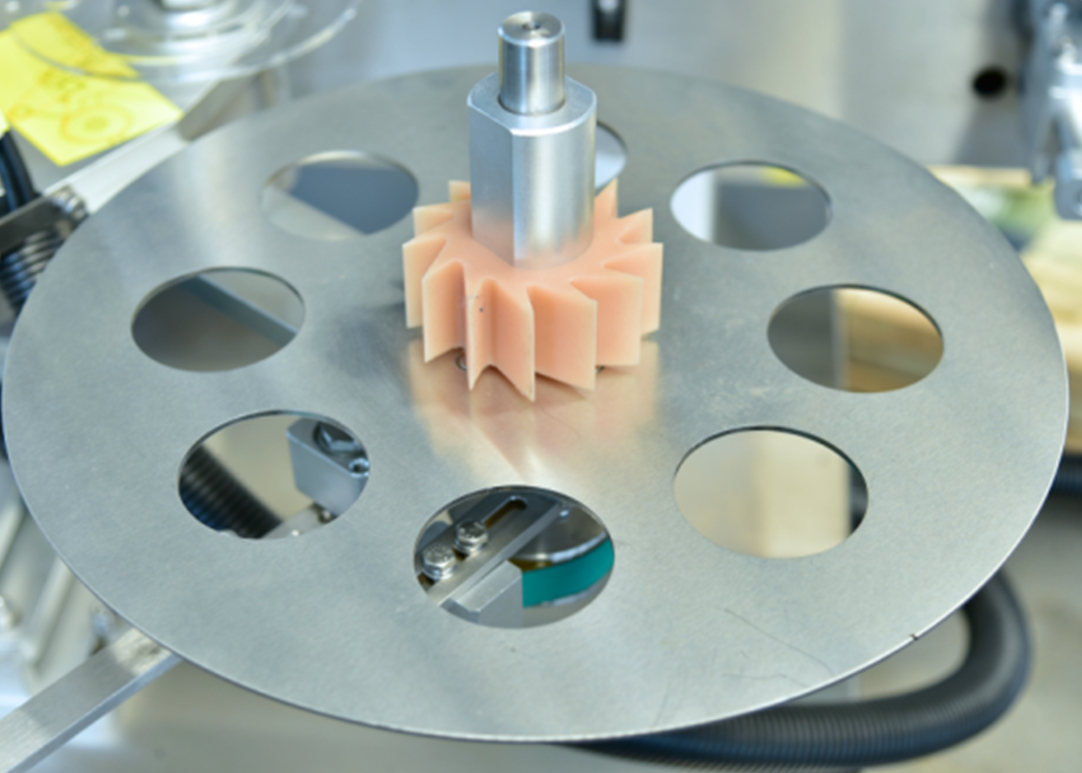

6.6 The center sleeve of the label placing tray adopts double-layer fixation, which can meet the label rolls with different sizes of label rolls within a certain range.
6.7 Put the label tray center sleeve using soft polyurethane production, can meet a certain range of label rolls within the set of different sizes of label rolls.
