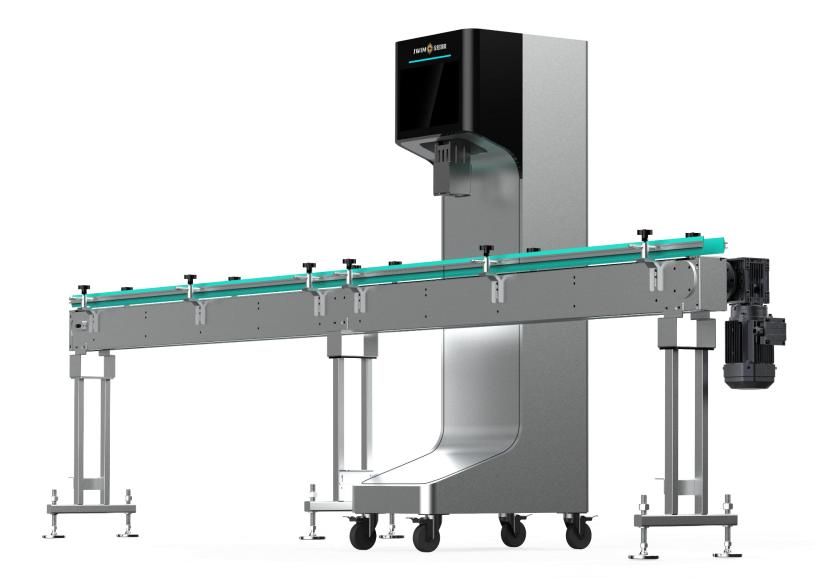

AI Aluminum Foil Sealing Quality Inspection Machine
1.Introduction
In the automatic production line, the workpiece with heat sealing or electromagnetic induction sealing is transported to the infrared thermal imaging detection station. The infrared thermal imager takes the thermal image of the heat-sealed bottle cap, and transmits the thermal image to the high-speed image processing system for calculation and recognition.
Through statistical analysis of the temperature distribution model of the thermal image after aluminum foil sealing, whether the sealing quality is qualified or not can be judged. The unqualified products will be removed to the designated collection area, and the qualified products will be transported to the next process.
AI interaction, voice recognition start and stop equipment, switching formula to adapt packaging specifications.
2.Technical Parameters
|
1
|
Maximum detection speed
|
120 bottles/min (specific detection speed varies depending on different product sizes)
|
|
2
|
Unqualified detection rate and rejection rate
|
100%
|
|
3
|
False kick rate
|
2-3‰
|
|
4
|
Applicable packaging material size
|
Bottle diameter:30-300mm,Height:50-500mm
Lid size:30-200mm
|
|
5
|
Detection category
|
No aluminum foil, aluminum foil warping, damaged aluminum foil along bottle edge, poor aluminum foil sealing
|
|
6
|
Image detection accuracy
|
±0.05mm
|
|
7
|
Power/power
|
AC220V 50Hz/0.2KW
|
|
8
|
Overall size
|
680*840*2000mm
|
3.Advantage
Four advantages and comparisons
|
Function items
|
Traditional quality inspection machine
|
This machine (AI aluminum foil sealing quality inspection machine)
|
|
Power on mode
|
Manual start
|
One-click power on and automatic start
|
|
temperature correction
|
Manual debugging in the morning, afternoon and evening
|
Automatically calibrates at regular intervals
|
|
environmental disturbance
|
Affected by temperature fluctuations
|
AI algorithm adaptive
|
|
appearance design
|
Conventional styling
|
Patent technology and appearance
|
1, One-click start: Other products in the market need to be powered on and then manually started, while our products only need to be powered on to achieve automatic start.
2, Intelligent temperature control: The products on the market need to continuously check the temperature in the frame template in the morning, afternoon and evening. The products of our company can automatically check the temperature in the frame template after the interval is set. This makes the detection more accurate.
3, Intelligent algorithm: The products on the market lack practical experience and ignore the influence of environment on temperature (such as human proximity, etc.). Our company develops intelligent algorithm to improve the influence of environment on temperature.
4, AI intelligence: AI interaction, voice switching and packaging material adaptation. At the same time, AI large model data analysis can automatically generate quality inspection reports, saying goodbye to manual reports.
5,Patent appearance: Appearance patent, which adds value to the production line. Small size, big technology.
Schematic diagram of common defects
|

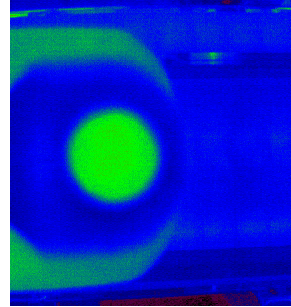

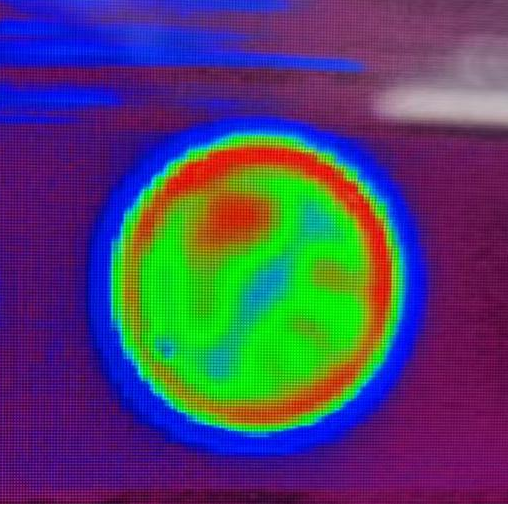

Thermal imaging image
|
Examples of physical images
|
Description of defective products
|
|
|
|
No aluminum foil
|
|
|
|
Aluminum foil unsealed
|
|
|
|
big gap
|
|
|
|
Aluminum foil reverse loading
|
|
|
|
crooked cover
|
|
|
|
overheat
|
|
|
|
Double aluminum foil
|
|
|
|
small gap
|
|
|
|
Folding (most of these situations can be detected)
|
|
|
|
Loose lid (most of these cases can be detected)
|
