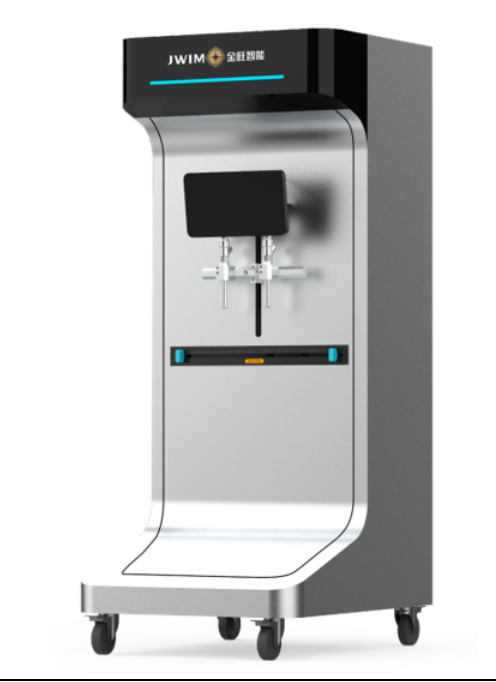

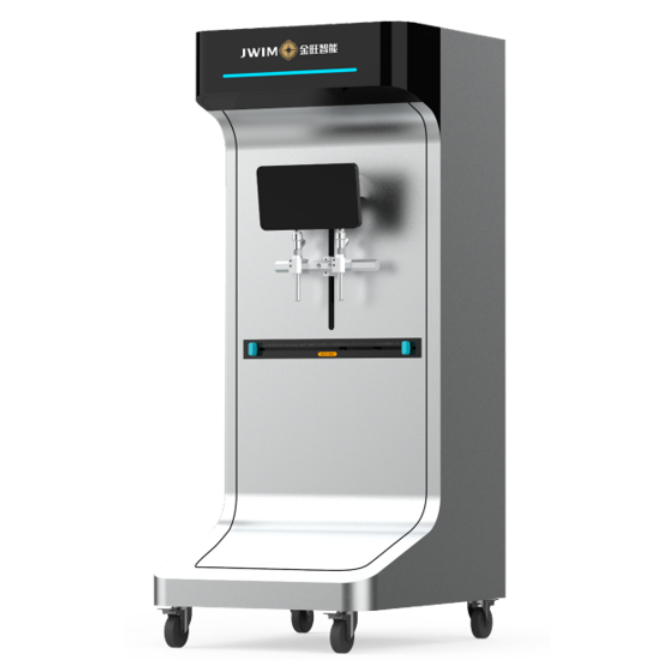

CCG5000-2P Automatic AI filling machine
1.Introduction
The CCG5000-2P fully automatic AI filling system consists of a frame assembly, filling pump components, lifting mechanism, and blade movement components. Utilizing servo motor-controlled rotary/pump/gear pumps for filling operations, it is suitable for packaging water-based solutions, emulsions, oil suspensions, suspension agents, and high-viscosity materials ranging from 50 to 5000ml.
AI interactive voice switching specifications. It can be connected to any production line as needed for production, or used as a single machine to meet customers' requirements for small-batch production of multiple specifications. It is very convenient in operation, loading adjustment, equipment cleaning, maintenance and other aspects.
2.Technical Parameters
|
1
|
Production speed
|
500-1000 bottles/hour(100ml as an example)
|
|
2
|
Filling capacity
|
50-5000ml
*The filling capacity varies according to the material properties and feed device.
|
|
3
|
Measuring accuracy
|
Repeatability precision±1 %( 100ml as an example)
|
|
4
|
Scope of applicable packaging materials
|
Round bottle 40mm-100mm
Square bottle 190mm*140mm*300mm(L*W*H)
|
|
5
|
Power
|
220 V 50 Hz 2.8KW
|
|
6
|
Gas consumption
|
0 . 6 - 0 .8 Mpa 100L/MIN
|
|
7
|
External dimensions
|
680mm(L)×915mm(W)×1800mm(H)
|
|
8
|
Net weight of the machine:
|
300 Kg
|

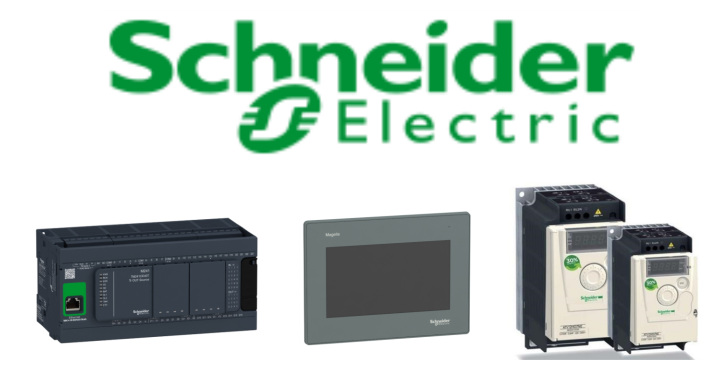

3.Electrical Configuration
|
No.
|
Name
|
Brand
|
|
|
1
|
Programmable Controller CPU
|
Schneider
|
|
|
2
|
HMI
|
Schneider
|
|
|
3
|
Servo System
|
Schneider
|
|
|
4
|
Counting Sensor
|
SICK
|
|
|
5
|
Cylinder
|
AIRTAC
|
|
|
6
|
Power Switch
|
Schneider
|
|
4.Advantage
1. Wide application range, can fill 50ml, can also fill 5L, widely used in agrochemical, veterinary medicine, fine chemical industry, daily chemical industry, fertilizer, oil and other industries 50-5000ML bottle automatic filling.
2.
The whole machine adopts the patented shape, which is elegant, strong sense of science and technology and high grade. The appearance patent adds points to the production line and shows the sense of science and technology
3. AI interaction and voice switching specifications, so that the mouth can move without hands. The servo motor automatically adjusts the blade to the appropriate position by issuing commands from AI voice, and the bottle inspection photoelectric and cylinder move at the same time, without special adjustment

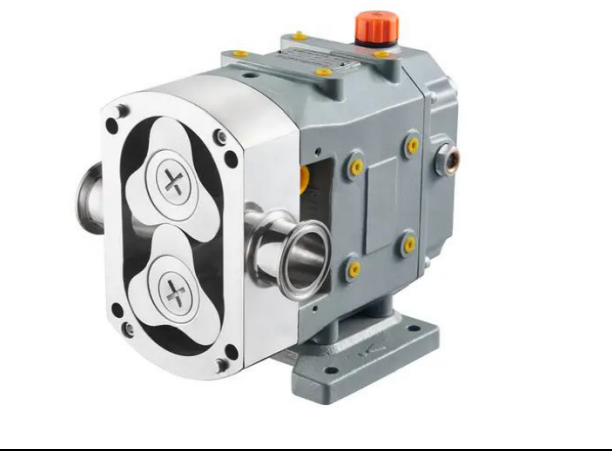

4. High precision: servo motor drives the rotor pump/gear pump for filling, with high volume filling accuracy; easy cleaning and switching, suitable for various materials filling.
5. No material box design, no material waste, and 60% less cleaning time to reduce the risk of cross-contamination.
6. Flexible production, free switching of ton barrels or storage tanks for feeding, flexible and mobile
7. Modular design, free combination, can be used alone, can be equipped with the production line, plug and play, a small handy man who can replenish a single piece or fill a bottle.
8. The software provides lifetime free upgrade service
9. 7*24 hours a day nanny service (100 after-sales service team nationwide)
10. The whole electromechanical control system adopts French Schneider configuration, integrated electrical control system, more stable, reliable, safe, green and low energy consumption.
