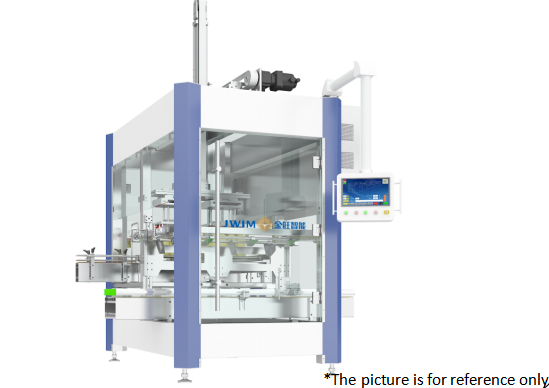

KZ-2T Automatic Carton Packing Machine
1.Introduction
This machine is suitable for automatic carton of regular round or square glass bottles and plastic bottles, realizing fully automatic secondary packaging of cartons, which can be applied to automatic carton of bottled products in agrochemical, veterinary medicine, food, daily chemical, pharmaceutical, and other industries. According to the demand of production capacity, it can choose one carton or two cartons.
2.Equipment Dimension
3.Technical Parameters
| 1 |
Packing Speed |
≤6 cartons/min (Packed in a carton without centerboard)
≤8 cartons/min (Packed in two cartons without centerboard)
*Actual capacity varies depending on product size, package material, etc.
|
| 2 |
Carton Size |
L 300-500mm W 200-400mm H 100-300mm |
| 3 |
Bottle Size |
Φ40-95mm H80-230mm |
| 4 |
Passing Rate |
99.9% |
| 5 |
Air Pressure |
0.6-0.8MPa |
| 6 |
Power Source |
~380V 50Hz/3.3KW |
| 7 |
Lifting Limit |
Lift the highest point to the ground 3400mm |
| 8 |
External Dimension |
2000×2200×2800-3600mm (L×W×H) |
| 9 |
Weight |
About 1200Kg |
4.Electrical Configuration
| S/N |
Name |
Brands |
|
| 1 |
Programmable Controller |
Schneider |
|
| 2 |
Touchscreen |
Schneider |
|
| 3 |
Frequency Converter |
Schneider |
|
| 4 |
Servo System |
Schneider |
|
| 5 |

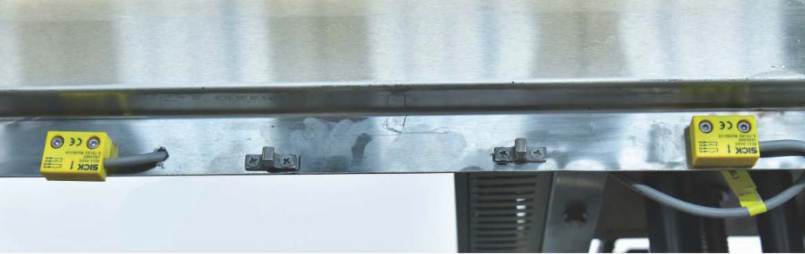

Counting Senor |
Sick |
|
| 6 |
Proximity Switch |
Schneider |
|
| 7 |
Power Switch |
Schneider |
|
| 8 |
Pressure Switch |
SMC |
|
| 9 |
Cylinder |
FTEC/Air TAC |
|
| 10 |
Solenoid Switch |
FTEC/Air TAC |
|
| 11 |
Button |
Schneider |
|
| 12 |
Alarm Light |
Schneider |
|
| 13 |
Breaker |
Schneider |
|

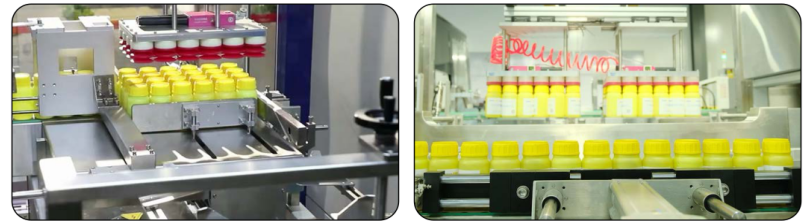

5.Working Process
6.Advantage
6.1 Saving production cost: save labor, improve production efficiency, can replace 2-3 carton workers.
6.2 Wide range of applications: suitable for carton plastic bottles, glass bottles, aluminum bottles, cartons and other packaging materials.

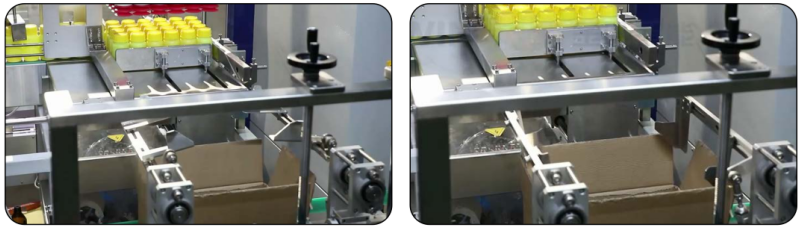

6.3 Adopting automatic carton-supporting mechanism, the range of carton-supporting can be adjusted, and the process of box-loading is more reliable.
6.4 Adopting front and rear clamping plate to clamp and push, no bottle falling down, more accurate positioning.

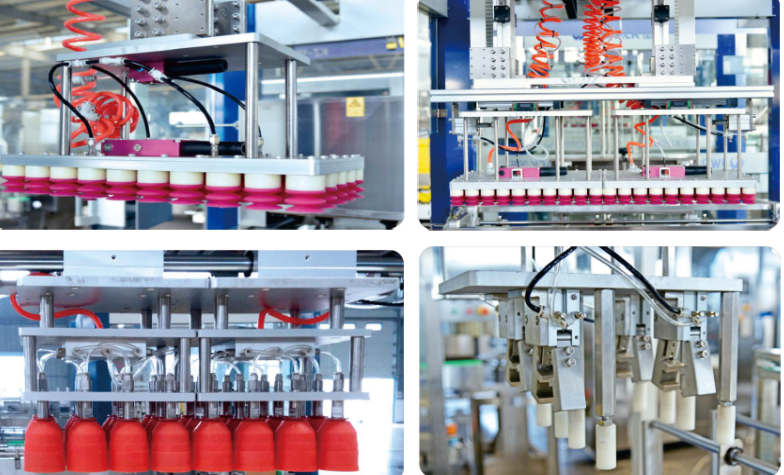

6.5 Easy to adjust the specification: through the replacement of different carton molds (bottle gripper, suction cup, gripper, etc.) with quick-fit connection, the specification can be switched quickly. The owner is required to provide bottles, caps and matching cartons, and our company is required to make the carton molds according to the package materials and cartons.

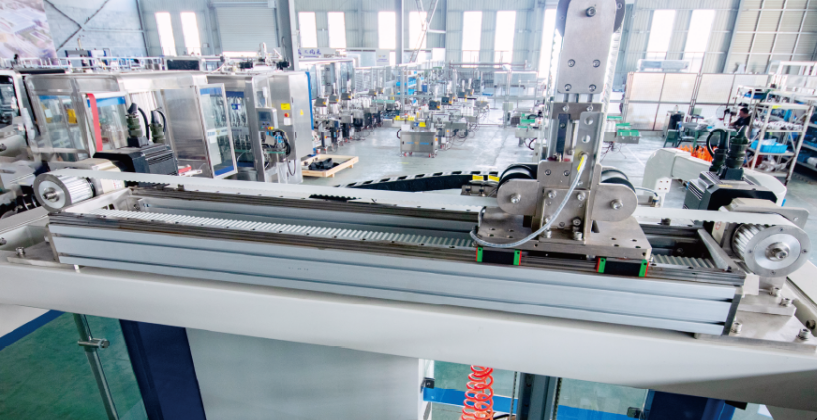

6.6 Dual servo-driven "cross-shaped" movement mechanism to realize the picking and loading of bottles, patented design, flexible and convenient adjustment.
6.7 Equipment to increase the safety door switch, open the door to stop when production, to protect personnel and equipment safety. (This function is optional
6.8 The whole electrical control system of the equipment adopts French Schneider configuration uniformly, with good compatibility and low energy consumption, ensuring the stability and reliability of the equipment.
