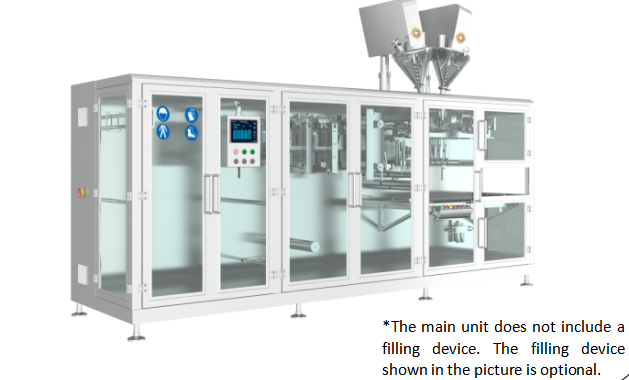

Piston Liquid Filling Machine Integrating Bag Forming Filling Sealing and Finished Product Transportation in One System

1.Introduction

The equipment includes motor film releasing, bag forming, bag bottom sealing, middle sealing, vertical sealing, servo bag pulling, shearing, bag opening and filling, bag transfer, bag top sealing and other mechanisms. The motor drives each cam on the main shaft to complete the coordinated actions of each mechanism, and the encoder on the main shaft feeds back the position signal. Under the programmable control of the PLC, the film roll → bag forming → bag making → filling → sealing → finished product transportation is realized The function realizes the fully automated production of roll film bags.

The machine has a reasonable design and a novel appearance. It adopts standard stripe sealing. By replacing the filling machine, the machine can automatically fill various materials such as powder, granules, suspending agents, emulsifiable concentrates, and aqueous agents. The whole machine is made of SUS304 stainless steel, which has good anti-corrosion effect on highly corrosive materials. Plexiglas outer cover prevents dust leakage and is more environmentally friendly and pollution-free.

2.Equipment dimensio

3.Technical Parameters

4.Advantage

①Film release and automatic film feeding②Ribbon coding (optional)③Film forming④Bottom seal⑤Central seal

⑥Vertical seal⑦Diamond tear (optional)⑧Virtual cut⑨Servo holding bag⑩Cut ⑪Open the bag

⑫filling ⑬Weighing feedback (optional) ⑭top seal ⑮Finished product output
5.Electrical configuration

6.Equipment advantages

Efficient, safe and environmentally friendly

6.1 A simpler and more efficient operating system and integrated intelligent system make your operation simpler and can be completed with one click.

6.2 Temperature control integrated module: Monitor temperature changes in real time, and the operation is clear at a glance. This effectively controls the heat sealing mechanism to ensure sealing reliability and make the packaged products easy to use and look good.

6.3 Servo bag pulling system, specification replacement can be completed with one-click input, resulting in less packaging material loss.

6.4 Weighing feedback system: Measurement adjustment is at your fingertips, reducing material waste. (This feature is optional)

6.5A safer production environment

The main configuration of the whole machine adopts Schneider Electric system (PLC programmable controller, human-machine interface, servo system, frequency converter, switching power supply, etc.), which is safer, more reliable, efficient and environmentally friendly, and brings you more economical energy consumption.

6.6 Multiple safety protectionsto maximize the stability and reliability of equipment operation.

6.7 In order to prevent the ironing block parts on the equipment from becoming sticky, bag-sticking, material sticking, etc. after long-term use, the surfaces of the bottom seal, vertical seal, top seal and other parts are all made of Special spraying, to avoid the above situation from happening.

6.8 The whole machine frame is made of SUS304 stainless steelProcessed and manufactured, it has excellent corrosion resistance; the plexiglass outer cover prevents dust leakage and is more environmentally friendly and pollution-free.

6.9 This machine officeThe connecting rod parts are made of SUS304 stainless steelCasting, strong firmness and no deformation. Other manufacturers generally use welded connecting rods, which are easy to break and deform.

6.10 Versatility of filling device

Connectors for filling devices such as powders, water agents, viscosity agents, and granules are reserved on the equipment. The software is also designed to be reserved. When replacing the filling device, the user only needs to install the connectors and call the function on the touch screen. Ready to use.

6.11 Central operation control

The central control box is installed in the middle of the equipment. It is beautiful, elegant and convenient for operation and maintenance. Workers do not need to run back and forth during operation, which can effectively improve work efficiency. It is also equipped with an independent operation button box, which has functions such as dose fine-tuning and debugging jog, making the operation more convenient.

6.12 Use double scissors to increase production capacity. For single bags, the production capacity can be doubled on the original basis..(This feature is optional)

6.13 Film changing and bagging device

When a roll of film is used up, there is no need to pull out the remaining film roll on the equipment. You only need to bond it to a new film roll on this device to continue starting the machine, reducing packaging material loss. (This feature is optional)

6.14 Diamond tear

It adopts an independent tearing mechanism, and the cylinder drives the cutter to perform reciprocating motion to achieve the tearing effect, which is easy to tear and beautiful. Its use effect far exceeds that of ironing block tearing, and there is a debris collection device on the tearing device. (This feature is optional)
