PLC Controlled Micro-Computer Filling Machine with Electric Scale Weight Feedback and Stainless Steel 304 Frame

Wide Application Range: Suitable for automatic filling of 50-1000mL bottles in veterinary medicine, fine chemical, daily chemical, fertilizer, oil and other industries.

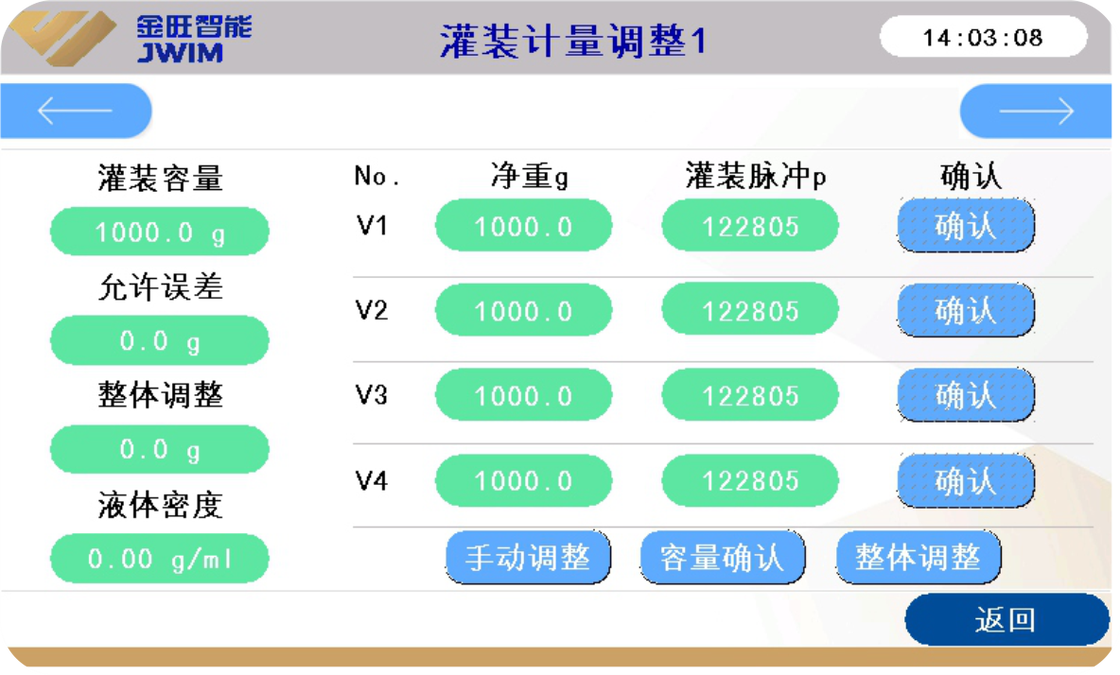

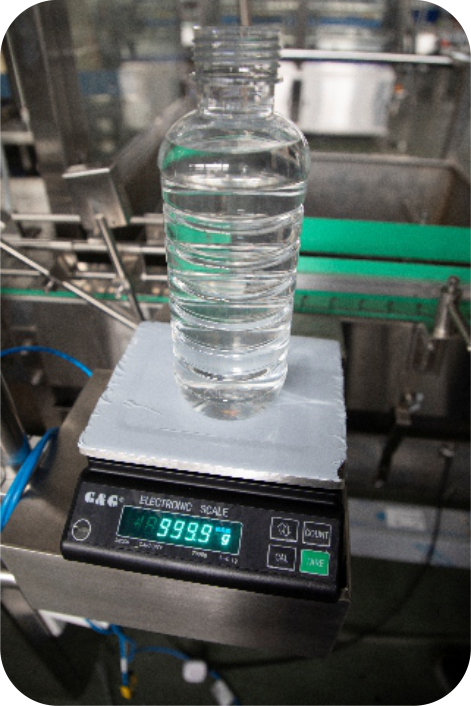

Electric Scale Weight Feedback System: Volume adjustment can be done by pressing one key in the touch screen (Optional function).

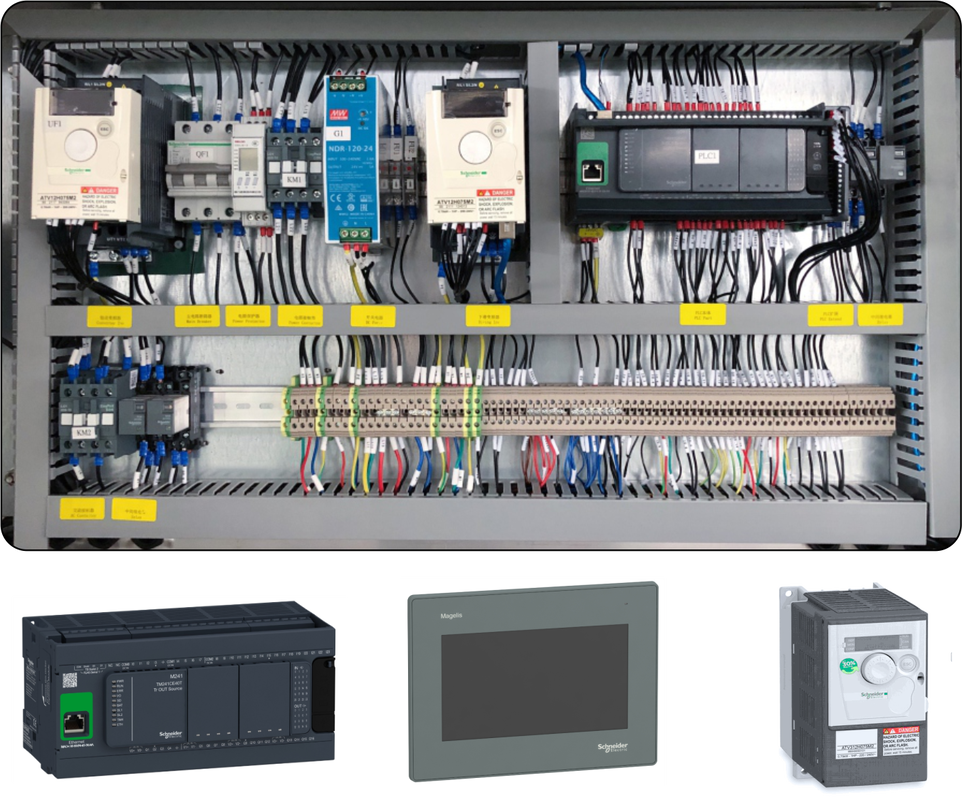

Premium Electrical Control System: Utilizes Schneider configuration with integrated electric control system for enhanced stability, reliability, safety, and low energy consumption.

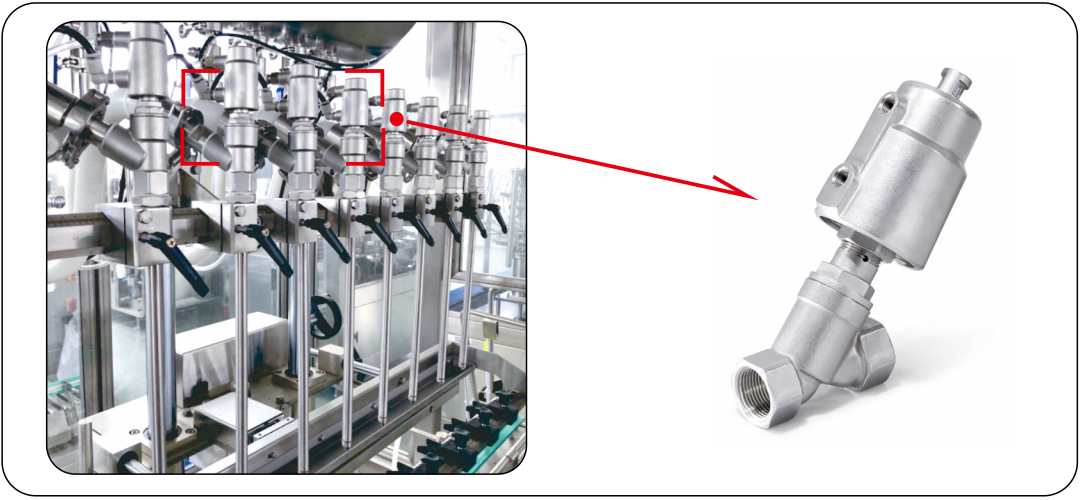

High-Quality Angle Seat Valve: Features Qingdao ESG integral precision casting angle seat valve with exquisite appearance, long lifespan, easy installation, stable filling dose, and reliable durability.

Easy Maintenance Design: Material box connection parts utilize quick installation connections for convenient cleaning and maintenance. Manual ball valve made of 316 material for extended service life.

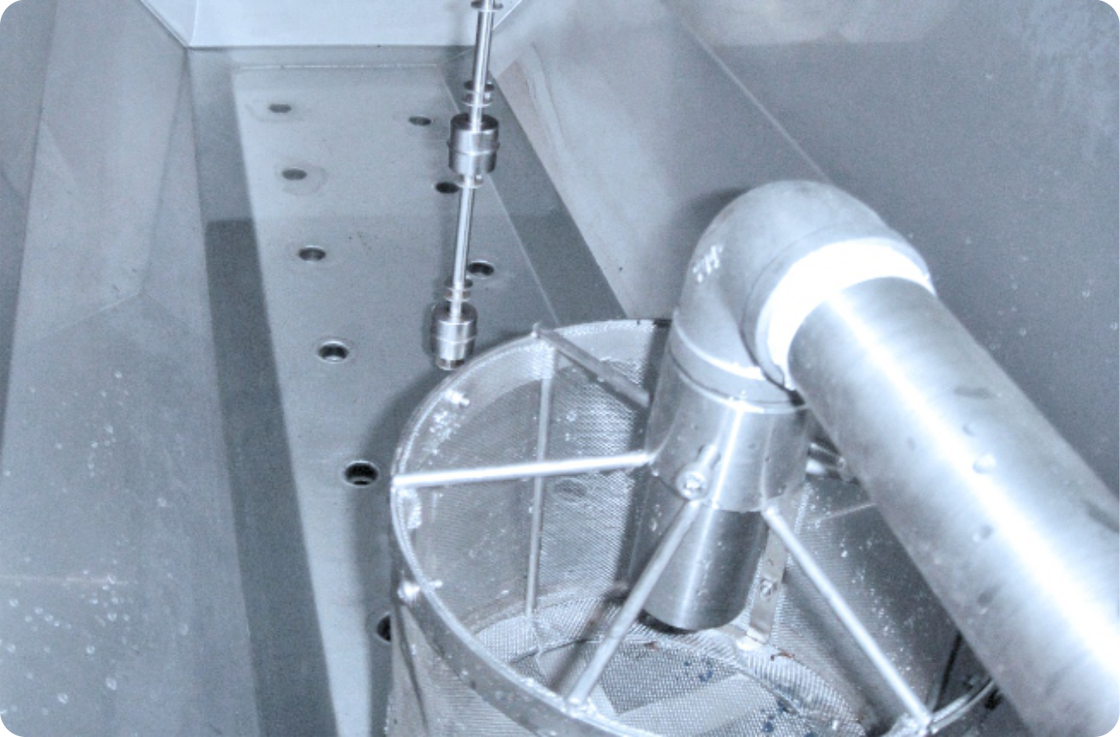

Advanced Filtration and Safety: Detachable filter screen installed on feed pipe to prevent impurities from affecting filling accuracy and valve lifespan. Includes high and low liquid level detection with sound and light alarm devices for abnormal liquid level prevention.

Smart Bottle Detection: Machine does not fill when there is a shortage of bottles. Equipped with coordinated photoelectric devices that automatically pause bottle output during blockages and achieve linkage function with rear equipment.

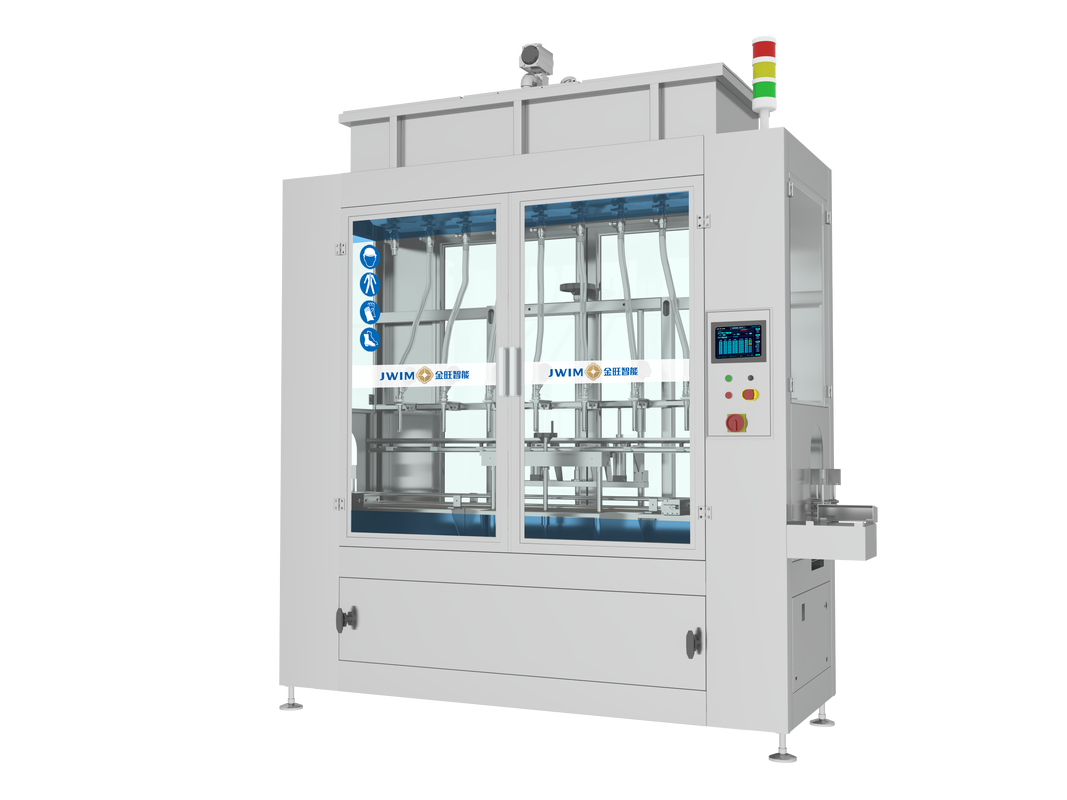

Premium Construction: Entire machine uses Stainless Steel 304 frame for perfect anti-corrosion effect. Stainless steel cover and toughened glass door prevent dirty air from polluting the environment. Includes Φ120mm exhaust outlet on top for connection to induced draught system for gas exhaust.
