Daily Chemical, Food, Grain, Chemical 5-30L JP Bottle Feeder Machine

5-30L JP bottle feeder machine

chemical bottle filling machine

grain pesticide filling machine

Place of Origin:

made in China

Brand Name:

JWIM

Certification:

CE,CO,ISO

Model Number:

Document:

JP Bottle Feeder Machine(5-...L).pdf

Request A Quote

Daily Chemical, Food, Grain, Chemical 5-30L JP Bottle Feeder Machine

Product Details

Bottle Size:

Minimum Bottle Size :200×140×320mm Maximum Bottle Size:290×260×500mm

Power Source:

~220 50HZ/0.75KW

Equipment Size:

2500×2335×600mm(L×W×H)

Weight:

About 200Kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

wooden cases

Delivery Time

15-90 work days

Payment Terms

L/C,T/T

Supply Ability

1 set per month

RELATED PRODUCTS

Contact Now

Product Description

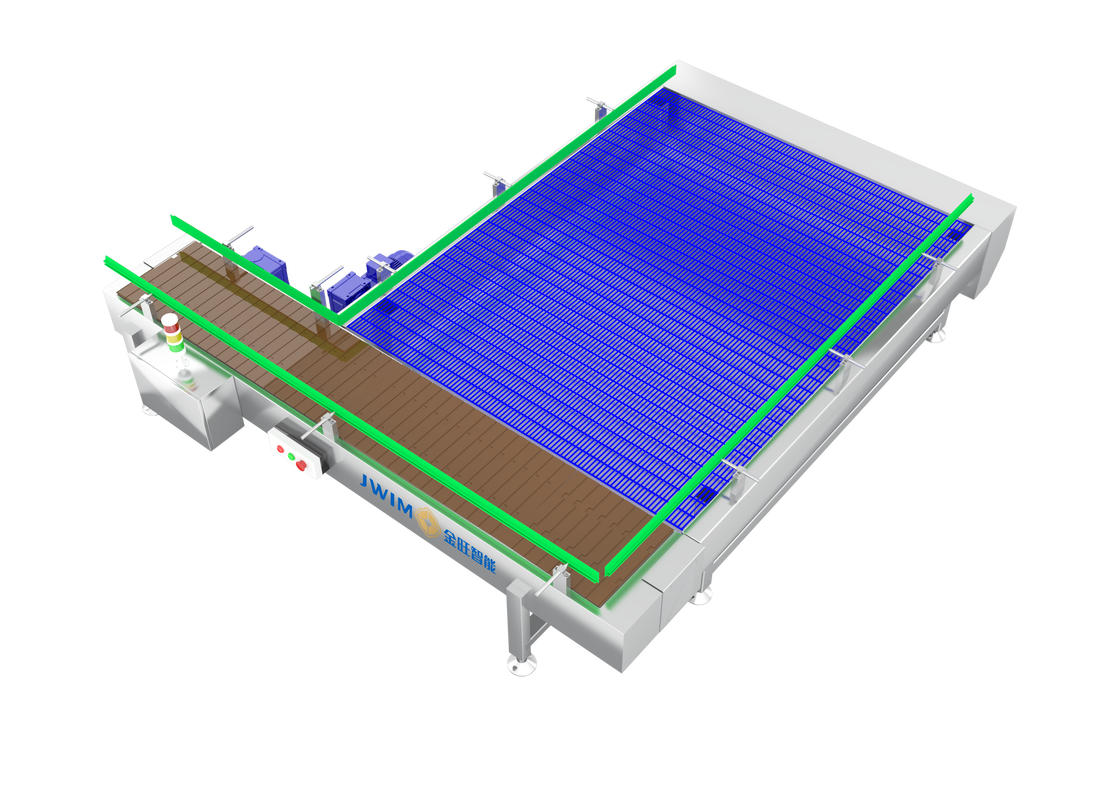

JP Bottle Feeder Machine(5-30L)

1. Introduction

This machine using manual bottle lading,automatic bottle into the way.Manually placing the bottles in the whole row on the bottle feeding platform,the feeding platform delivers the whole row of bottles onto the conveyor.Replace a fixed person to repeat the put bottle action,reduce the labor intensity of personal.

Daily Chemical, Food, Grain, Chemical 5-30L JP Bottle Feeder Machine

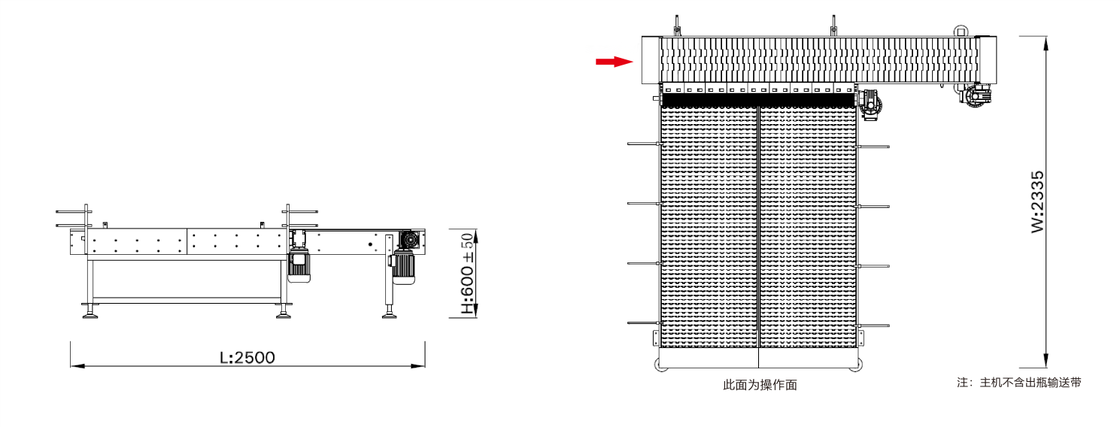

2. Equipment Dimension Drawing

3. Technical Parameters

1	Bottle Size	Minimum bottle size :200×140×320mm Maximum bottle size:290×260×500mm
2	Power Source	~220 50HZ/0.75KW
3	Equipment Size	2500×2335×600mm(L×W×H)
4	Weight	About 200Kg
