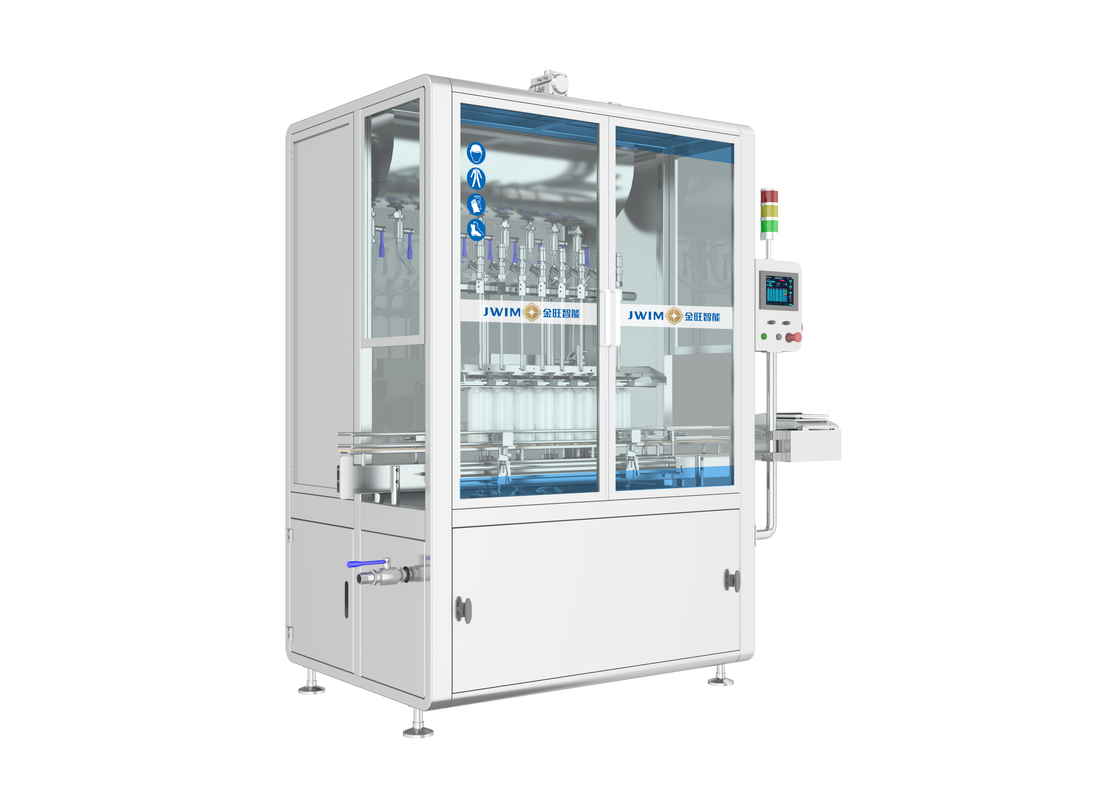

CDP-8AJ Micro-Computer Filling Machine with PLC Control SUS304 Stainless Steel and Electronic Weighing System

Wide Application Range: Widely used in automatic filling of 50-1000mL bottles in veterinary medicine, fine chemical, daily chemical, fertilizer, oil and other industries.

Optimized Material Box Design: The material box features a circular arc bottom design for more thorough material drainage and no dead corners for cleaning. Valves use quick-installation design for easy disassembly and cleaning; material box includes cleaning ball for enhanced convenience.

Premium Electrical Control System: Features Schneider configuration with integrated electric control system for enhanced stability, reliability, safety, and low energy consumption.

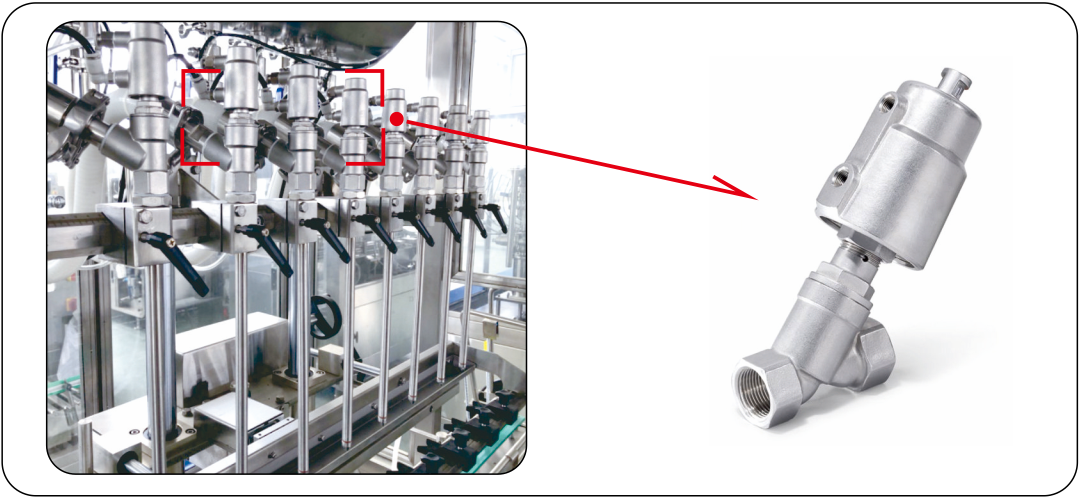

High-Quality Angle Seat Valve: Utilizes Qingdao ESG integral precision casting angle seat valve with exquisite appearance, long lifespan, easy installation, stable filling dose, and reliable durability.

Electronic Weighing System (Optional): Enables one-button dose adjustment completion for enhanced operational efficiency.

Enhanced Filtration and Safety: Feed pipe equipped with detachable filter-screen to prevent impurities from affecting filling accuracy and valve lifespan. Additional high and low liquid level detection with sound and light alarm devices prevent abnormal liquid level conditions.

Premium Construction: Entire machine constructed from high-quality SUS304 stainless steel with excellent anti-corrosion performance. Stainless steel outer cover and tempered glass door seal the machine body, better adapting to agrochemical production environments. Reserved air outlet above filling head (Φ120mm) can connect to factory air induction system to discharge waste gases generated during filling process.
