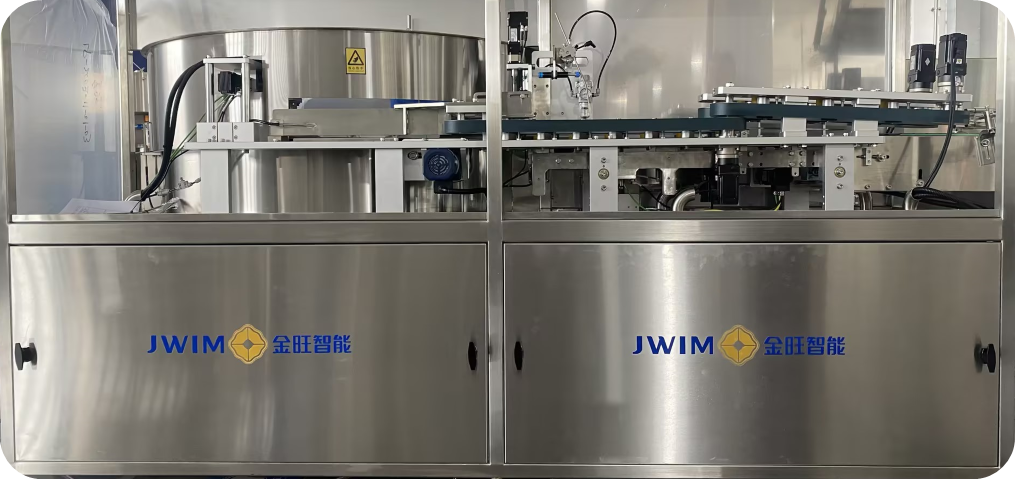

LP-200F Automatic Bottle Unscrambler Machine

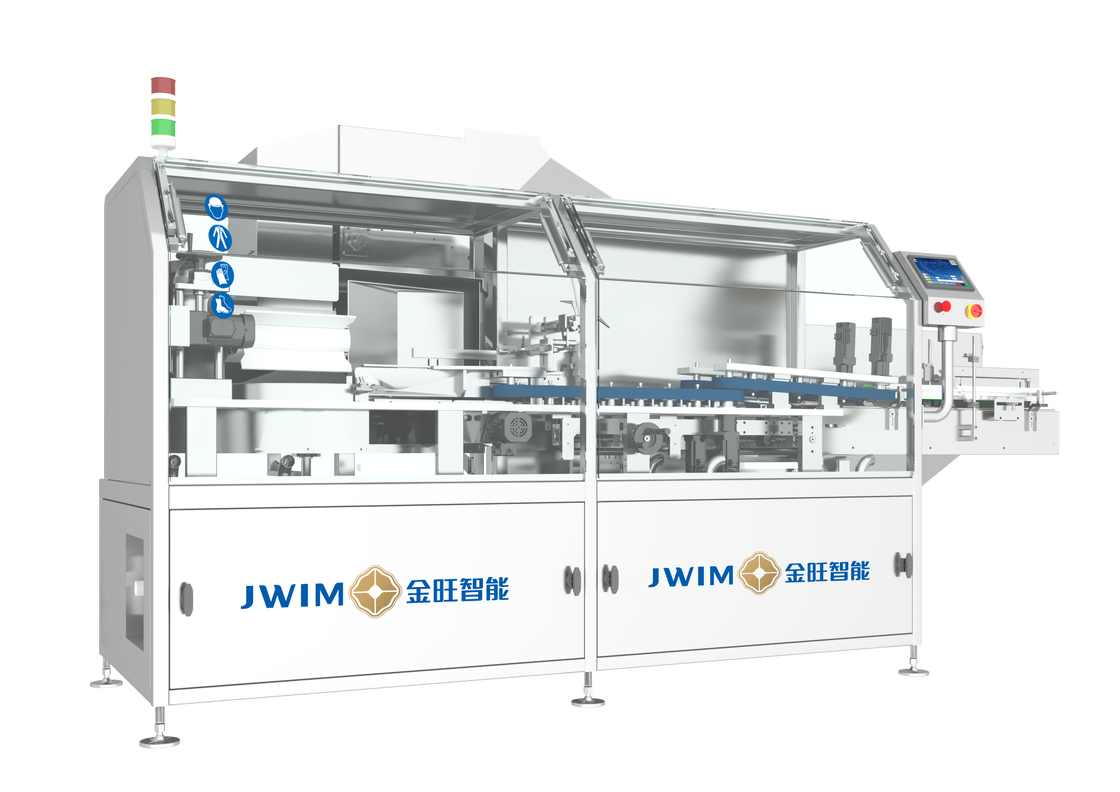

1. Introduction

The LP-200F fully automatic bottle sorting machine consists of a bottle loading machine, a bottle sorting turntable, a bottle removal component, a bottle sorting component, a bottle pouring and removal component, an electrical box, and a touch screen.

A large number of disordered bottles are put into the bottle sorting turntable by the bottle feeder and conveyed to the bottle sorting area through the conveyor belt, so that the bottles can be vertically conveyed to the user's conveyor belt. This model uses servo motor control for bottle sorting and dispensing, which is stable and reliable. It has been widely used in automated bottle production lines in various industries.

2.

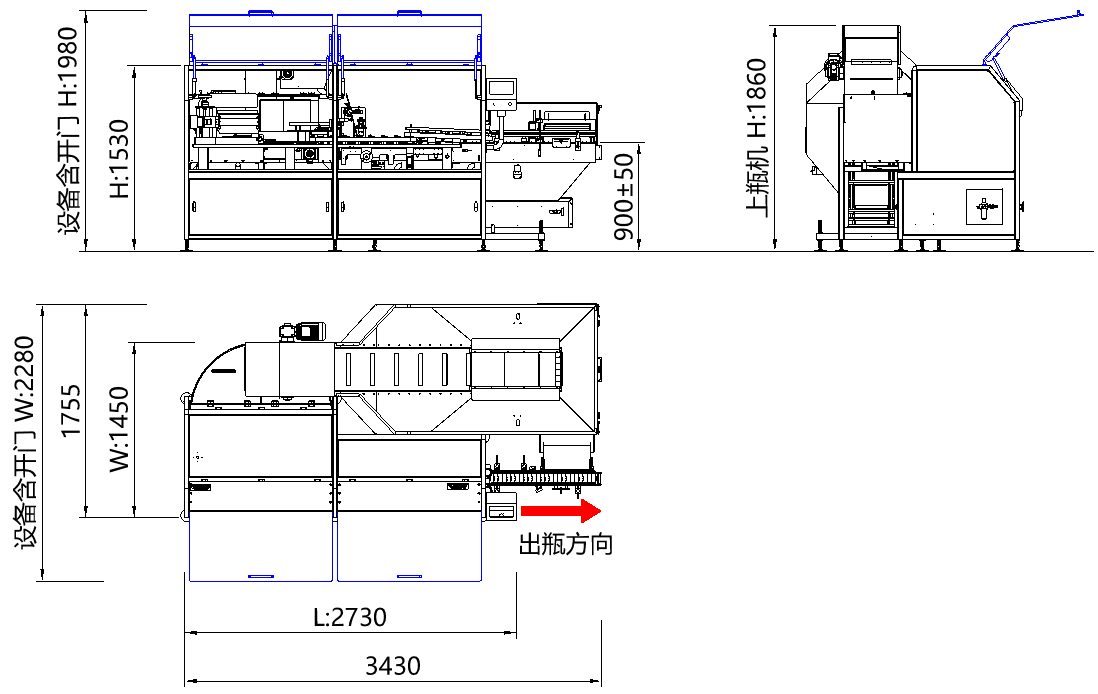

 Equipment Dimension Drawing

3. Technical Parameters

4. Electrical Configuration

5. Applicable Bottle Size

Widely used in agrochemical, veterinary, fine chemical, daily chemical, fertilizer, oil and other industries 50-1000ml bottles automatic bottle unscrambler.

6. Process Flows

①Bottle loading(bottles pass through the bottle loading machine into the bottle unscramble carousel)

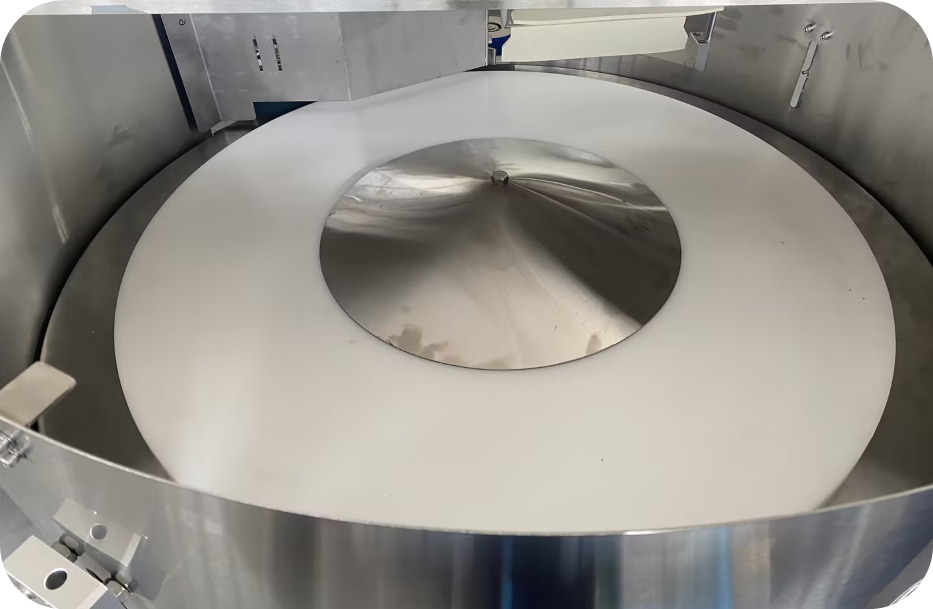

②Bottle delivery (a circular turntable feeds bottles to the bottle handling station,which can be used for different bottle diameters by increasing or decreasing the belt in the turntable)

③Kick the bottle (reject the overlapping bottles to facilitate bottle sorting)

④Hook the bottle (use the bottle hook device to stand the bottle hook upright with the bottle mouth facing forward)

⑤Standing bottles (Bottle bottom facing forward to stand up the bottle with the bottle standing mechanism)

⑥Bottle Feeding out (the upright bottle is conveyed to the filling station through the conveyor belt)

⑦Rejecting the inverted bottles (detecting whether there are inverted bottles through photo-electricity,the mechanical inverting device automatically rejects the bottles into the upper bottle hopper)

. Advantage

7.1. This model uses servo motor control for bottle sorting and dispensing, which is stable, reliable, and has good bottle sorting effect.

7.2. Strong universality: Changing specifications does not require changing any molds, making adjustments convenient and fast. Simply change the number of belts inside the turntable and adjust the bottle sorting belt to see the width.

7.3. More stable bottle dispensing: The tilted design of the bottle dispensing belt reduces the buffering force of the bottle when tilted at an appropriate angle compared to a horizontal structure, making it less prone to bottle tipping.

7.4. Automatic Bottle-feeding Function: The automatic bottle-feeding function only needs to pour the bottle into the bottle elevator, and the turntable is equipped with detection photo-electricity, so as to realize the automatic bottle-feeding when the bottle is insufficient, stop the bottle-feeding when the bottle is enough, when there is no bottles in the bottle elevator, it alarms automatically without manual intervention.

7.5. With harmonization of photoelectric: When the back-channel conveyor belt bottle congestion, pause the bottle; when the back-channel conveyor belt is smooth, again bottle, to achieve the perfect connection with the back-channel packaging equipment, can realize the whole machine unmanned operation.

7.6. Depending on the situation, it can be equipped with a blowing or mechanical bottle rejection device: when there is a bottle inverted, the rejection device automatically kicks the inverted bottle back into the collection hopper.( This function is optional )
