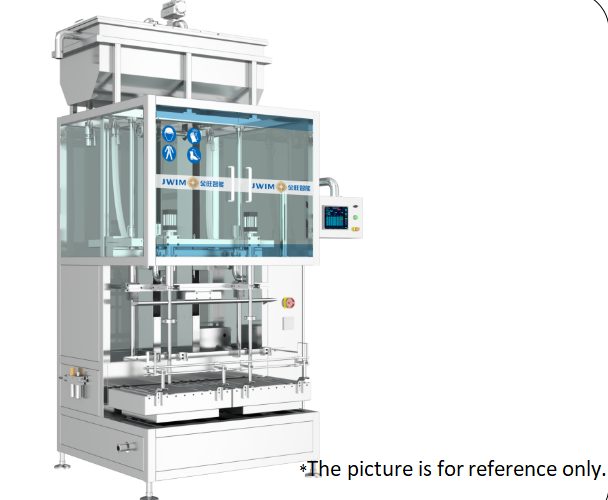

Name: Pesticide Filling Machine Equipped with METTLER TOLEDO Weighing System and Schneider Electrical Components for Operation
Brand: Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd
SKU: CC50-2
Price: 10000 USD
Availability: InStock

Home > products > Pesticide Filling Machine >

Pesticide Filling Machine Equipped with METTLER TOLEDO Weighing System and Schneider Electrical Components for Operation

Place of Origin:

CHINA JIANGSU

Brand Name:

JWIM

Model Number:

CC50-2

Request A Quote

Product Details

Product Feeding Pressure:

0.2-0.25Mpa

Applicable Drum Type:

MaximumΦ450*600mm Round/Flat Drum

Filling Range:

5-50kg

Filling Precision:

±0.2%

Capacity:

≤100Drums/hour (20Kg)

Air Pressure:

0.6-0.8MPa

Power Source:

~220V 50Hz/0.75KW

External Dimension:

1205×1100×2560mm(L×W×H)

Weight:

About 600Kg

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

$10000PCS

Packaging Details

WOODEN CASE

Delivery Time

30 WORK DAYS

Payment Terms

L/C, T/T

RELATED PRODUCTS

Contact Now

Product Description

CC50-2 Fixed Quantity Weight Filling Machine

1.Introduction

CC50-2 Fixed Quantity Weight Filling Machine consists of a weighing platform (with roller conveyor), a fast and slow filling (with cylinder diving) mechanism, and a weighing control unit. This liquid filling scale can meet the weighing and filling needs of various containers, and is suitable for materials with good fluidity.

2.Machine Dimension

Pesticide Filling Machine Equipped with METTLER TOLEDO Weighing System and Schneider Electrical Components for Operation
3.Technical Parameters

1	Product Feeding Pressure	0.2-0.25Mpa
2	Applicable drum type	maximumΦ450*600mm Round/Flat drum
3	Filling Range	5-50kg *Filling range differs from the product characteristic and product feeding.
4	Filling Precision	±0.2% *Precision differs from product, drum and product characteristic.
5	Capacity	≤100Drums/hour (20Kg) *Capacity differs from product, drum and product characteristic.
6	Air Pressure	0.6-0.8MPa
7	Power Source	~220V 50Hz/0.75KW
8	External Dimension	1205×1100×2560mm(L×W×H)
9	Weight	About 600Kg

4.Electrical Configuration

SN	Name	Brand
1	Weighing System	METTLER TOLEDO
2	Power Switch	Schneider
3	Button	Schneider
4	Cylinder	FTEC/AIRTAC
5	Solenoid Valve	FTEC

5.Advantage

5.1 Small footprint, compact structure, simple to use, only one person to operate, save labor.

5.2 High Precision: Weighing filling (US Mettler Toledo Weighing Sensor) to make sure the high filling precision.

5.3 Electronic scale combined with button type control instrument, convenient dosage adjustment, real-time weight monitoring.

5.4 Fast and slow filling valve is adopted to reduce the influence of foamy materials on filling , while ensuring measurement accuracy and speed.
