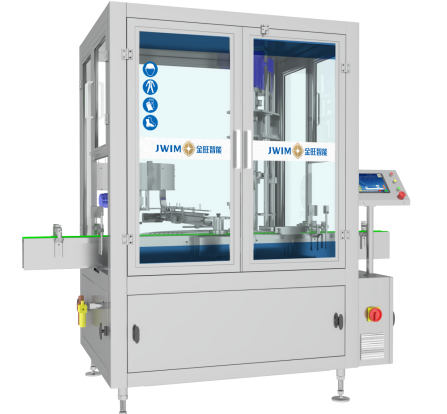

FXJ-1(DY) Automatic Capping Machine

FXJ-1(DY) Automatic Capping Machine

1.Introduction

FXJ-1(DY) automatic capping machine adopts the design of turntable type cap management, hooking type cap supply, and the way that the cap is first set into the capping head before capping, which ensures the qualified rate of capping.

By replacing different capping devices, it can realize various forms of capping of plastic screw cap, aluminum cap and press-in cap. It is designed with flexible changeability, simple operation, and moreover, it can change different container capping operations in a short time.

2.Machine Dimension

3.Technical Parameters

4.Electrical Configuration

5.Working Process

①Cap management (turntable type cap management, positive cap into the drop cap groove, reverse cap kicked back to the cap management device)

② Bottle feeding (using a star wheel to feed bottles, a workstation a bottle)

③Grab the cap (mechanical hook to pick up the cap, sent to the capping head, capping head to grab the cap)

④Screwing cap (using the star wheel disk positioning, bottle presser fixed form of capping)

⑤ Bottle discharge (the capping is completed and the bottle is discharged from the equipment)

6.Applicable bottle type

Widely used in agrochemical, fine chemical, daily chemical, fertilizer, oil and other industries 1-5L bottle automatic capping.
7.Advantage

7.1 High qualification rate: adjustable torque, the capping head adopts three-claw design, which ensures that the cap is not injured in the capping process, and the gripping cap is more stable in capping.

7.2 Wide versatility: Replacement of different star wheel discs can realize round and square bottle versatility.
7.3 Intelligent and advanced intelligent system, no bottle automatic shutdown, start with bottle. (Handle facing forward, barrel mouth running backward)

7.4 Vibrating cap adjuster, simple and stable adjustment, high qualified rate. (Optional soundproof cover)

7.5 The main machine is equipped with a clutching mechanism at the transmission place (the picture below left), it will automatically clutch when there is bottle jamming or spindle torque overload, and stop the machine for alarm.

7.6 The bottle outlet is equipped with bottle hooking cylinder (right lower picture) to ensure smoothness and stability during operation.
