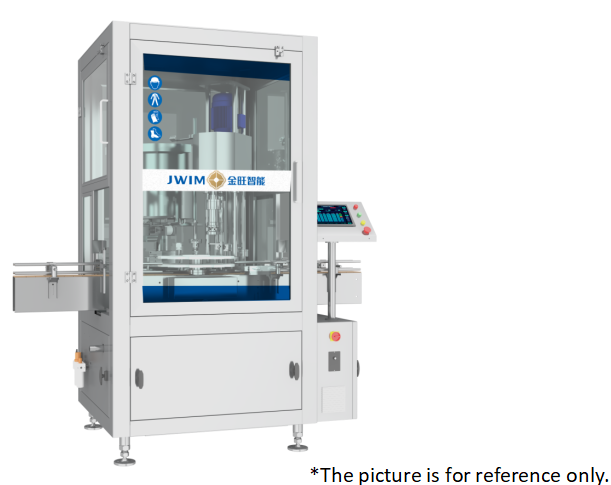

FXJ-1 Automatic Capping Machine

1.Introduction

FXJ-1 automatic capping machine adopts the design of turntable type cap management, hooking type cap supplying, and the way of caps being set into the capping head first before capping, which ensures the qualified rate of capping. By replacing different capping devices, it can realize various forms of capping of plastic screw cap, aluminum cap and press-in cap.

It is designed with flexible interchangeability, easy operation, and moreover, it can change different container capping operations in a short time. It can be used individually or in line production, and is suitable for automatic capping of general chemical, pharmaceutical, food, cosmetic and cleaning products.

2.Machine Dimension

3.Technical Parameters

4.Electrical Configuration

5.Working Process

① Cap sorting (turntable type cap sorting, the front cover is put into the cover slot, and the reverse cover is kicked back into the cap sorter)

②Bottle feeding (using star wheel to feed bottles, one bottle per station)

③Catch the cap (mechanical hook picks up the cap, sends it to the capping head, and the capping head grabs the cap)

④ Capping (using star wheel positioning and bottle press fixed capping)

⑤Bottle discharging (the capping is completed and the bottle is discharged from the equipment)

6.Applicable bottle type

Widely used in 50-1000ml automatic capping in agrochemical, fine chemical, daily chemical, fertilizer, oil and other industries.

7.Advantage

7.1 High qualification rate: adjustable torque, the capping head adopts three-claw design, which ensures that the cap is not injured in the capping process, and the gripping cap is more stable in capping.

7.2 Wide versatility: Replacement of different star wheel discs can realize round and square bottle versatility.

7.3 Intelligent and advanced intelligent system, no bottle automatic shutdown, start with bottle.
7.4 Vibrating cap adjuster, simple and stable adjustment, high qualified rate. (Optional soundproof cover)

7.5 The main machine is equipped with a clutching mechanism at the transmission place (the picture below left), it will automatically clutch when there is bottle jamming or spindle torque overload, and stop the machine for alarm.

7.6 The bottle outlet is equipped with bottle hooking cylinder (right lower picture) to ensure smoothness and stability during operation.
