Name: Pesticide Filling Machine with Precise Control and Durable Construction Suitable for Various Liquid Packaging Applications
Brand: Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd
SKU: ABB-460
Price: 10000 USD
Availability: InStock

Home > products > Palletizer Machine >

Pesticide Filling Machine with Precise Control and Durable Construction Suitable for Various Liquid Packaging Applications

Place of Origin:

CHINA JIANGSU

Brand Name:

JWIM

Model Number:

ABB-460

Request A Quote

Product Details

Handling Capacity:

110 Kg

Reach:

2.4 M

Axis:

Repeat Positioning Accuracy:

0.2mm

Robot Base Dimensions:

1007x720mm

Installation Requirements:

Floor Loading Strength Greater Than 2500kg/m², Cement Layer Thickness Greater Than 250mm

Power Source:

~380V 50Hz/3.67KW

Weight:

About 925Kg

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

$10000PCS

Packaging Details

WOODEN CASE

Delivery Time

30 WORK DAYS

Payment Terms

L/C, T/T

Supply Ability

1PCS PER MONTH

RELATED PRODUCTS

Contact Now

Product Description

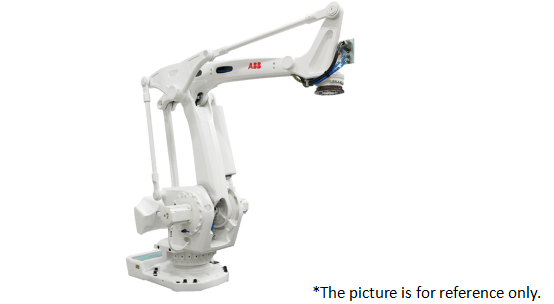

ABB-460 Palletizing Robot

1.Introduction

The robot palletizer is suitable for pesticide, fertilizer, veterinary medicine, condiment, beverage, food, beer, plastic and other manufacturers to palletize finished products of various shapes such as cartons, bags, cans, boxes, bottles and so on.

The structure is very simple, easy to maintain and repair; the main component parts are few, fewer accessories, low maintenance cost; can be controlled on the control cabinet screen, humanized operation; all-weather operation, equipped with robot hand can reduce the labor intensity of workers.

2.Technical Parameters

1	Handling Capacity	110 Kg
2	Reach	2.4 m
3	Axis	4
4	Repeat Positioning Accuracy	0.2mm
5	Robot Base Dimensions	1007x720mm
6	Installation Requirements	Floor loading strength greater than 2500kg/m², cement layer thickness greater than 250mm
7	Power Source	~380V 50Hz/3.67KW
8	Weight	About 925Kg

3.Palletizing Height and Speed

1	Palletizing Height	1700mm (include pallets)
2	Palletizing Speed	Axe1: +165~-165°(145°/s)
		Axe2: +85~-40°(110°/s)
		Axe3: +120~-20°(120°/s)
		Axe6: +300~-300°(145°/s)

4.Common Robot Grippers

S/N	Forms Of Grip	Remark
1	Sucker Type	Usually used for bags, cartons and other objects (can not be applied to the surface of the porous matrix, as well as items for liquid flexible packaging or uneven surface packaging), palletizing objects can be seamless.
2	Grabbing Type	Usually used for high-speed code bags, grab paper bags, woven bags and other bags, hook and claw type is suitable for wide mouth bucket.
3	Sandwich Type	Usually used for boxes, boxes and other blocky objects, can be one box or more boxes at a time, the load is 40kg, there will be a large gap between the palletised object and the object.
