DGD-220BJ Automatic Horizontal Preformed Bag Packing Machine
1.Introduction

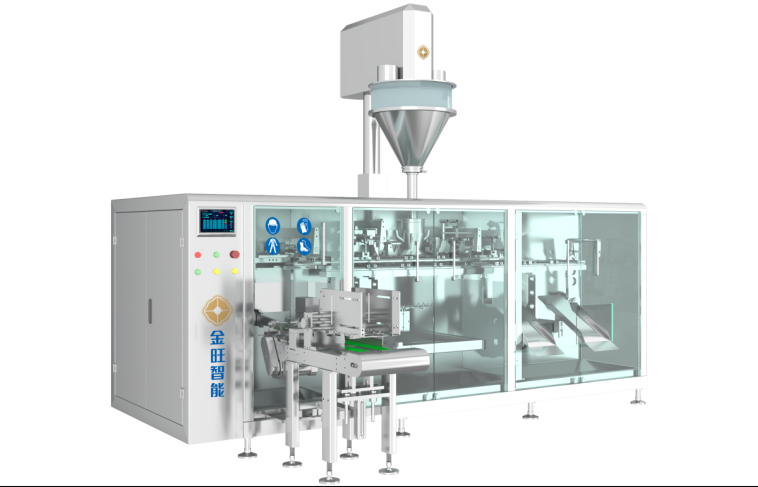

The DGD-220BJ Automatic Horizontal Preformed Bag Packing Machine includes a bag taking mechanism, a bag opening mechanism, a blowing mechanism, a filling mechanism, heat sealing, cold sealing and shaping, etc. The coordinated actions of each mechanism are completed through the mechanical linkage and cam structure, and the position signal is fed back by the encoder on the main shaft. Under the programmable control of PLC, the functions of bag taking → bag opening → detection → filling → sealing → finished product are realized .
The machine has a reasonable design and novel appearance. It adopts an arc-shaped frame and is equipped with a complete dust removal system, which meets the production requirements of safety and environmental protection. At the same time, by replacing the filler, automatic filling of various materials such as powders and granules can be realized on this machine. Suitable for packaging production of various types of premade bag products.
2.Equipment dimension
3.Technical Parameters
| 1 |
Production Capacity |
100g: 45-50 packs/min; 200g: 35-45 packs/min;
500g: 25-35 bags/minute;*Actual production capacity varies depending on product size, packaging material, material characteristics, etc.
|
| 2 |
Scope Of Application |
Minimum 120×140mm, maximum 215×300mm |
| 3 |
Packing Capacity |
≤500g*The filling capacity range varies depending on the physical properties of the raw materials and the feeding device. |
| 4 |
Accuracy |
50g, ±0.5g; 100-200g, ±1g; 300-500g, ±3g
*Measuring accuracy varies depending on material characteristics, filling volume and feeding device
|
| 5 |
Air Pressure |
0.6-0.8MPa |
| 6 |
Air consumption |
700L/min |
| 7 |
Power |
~380V 50Hz/4.5KW |
| 8 |
Dimensions |
3350×2180×1400mm(L×W×H)*Does not include powder filling device |
| 9 |
Weight |
About 4500Kg |
4.Electrical configuration
| SN |
Name |
Brand |
|
| 1 |
PLC |
INOVANCE |
|
| 2 |
Touchscreen |
INOVANCE |
|
| 3 |
Temperature Control Module |
Delta |
|
| 4 |
Pressure Switch |
SMC |
|
| 5 |
Photoelectric Sensors |
SICK |
|
| 6 |
Miniature Circuit Breaker |
Schneider |
|
| 7 |
Frequency Converter |
INOVANCE |
|
| 8 |
AC Contactor |
Schneider |
|
| 9 |
Rotary Encoder |
OMRON |
|
5.Advantage
5.1 This equipment is mainly used in the production of various types of premade bag products. The packaging is beautiful and well formed; there is almost no waste of packaging materials and materials.

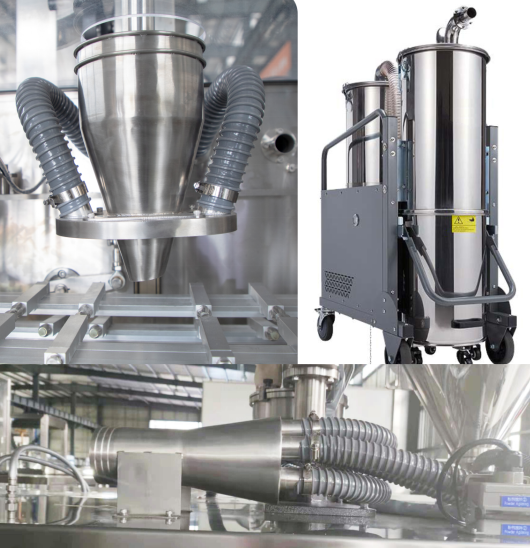

5.2 More environmentally friendly: The whole machine has a closed design to isolate dust inside the machine, and is equipped with a stainless steel dust removal piping system, which is environmentally friendly and pollution-free. (Dust removal pipes and dust collector are optional features)

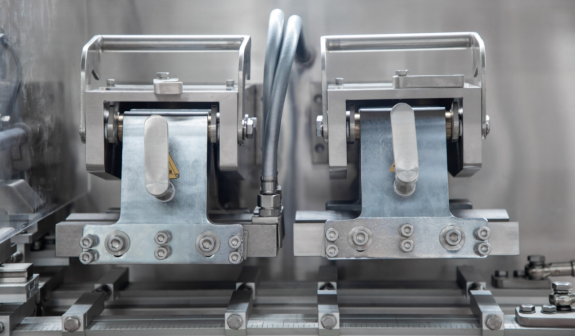

5.3 Easy maintenance: The flip-up ironing block structure makes maintenance and cleaning easy.

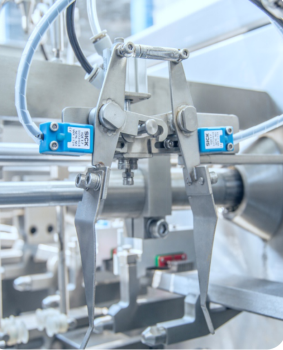

5.4 Cost saving: Unique bag opening detection function, no bag opening, no filling, no heat sealing, the bag can be reused, and no material is wasted.
5.5 Using Spanish cam technology, the cam generally uses an internal cam, which does not move and has higher operating accuracy.
5.6 The bag picking structure is optimized to extend the bag suction time and make bag picking more accurate;At the same time, the large-capacity bag placing mechanism can store about 300-500 bags. When the equipment is running, it can reduce the frequency of bag placing and improve production efficiency.
5.7 More durable:Exquisite design technology and imported CNC center parts processing, high precision and high standards ensure the stability and durability of each part.
5.8 Temperature control integrated module: real-time monitoring of temperature changes,Touch screen operation control, clear at a glance, ensuring the stability and reliability of equipment operation to the greatest extent.
5.9 Comes with a vacuum pump to reduce the impact of external air pressure fluctuations on bag loading and bag opening.
5.10 There is a trapezoidal water tank at the bottom of the whole machine, and the water outlet is connected to the sewage pipe, making cleaning and drainage more convenient.
