Automatic Capping Machine Featuring Cap Grabbing and Capping Mechanism Suitable for Various Bottle Cap Specifications

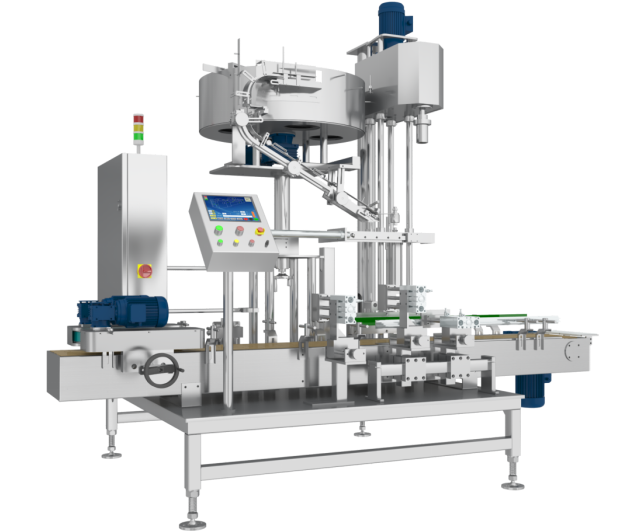

FX-1D Automatic Single-head Capping Machine

1.Introduction

This machine consists of cap transfer mechanism, cap grabbing and capping mechanism, conveying mechanism and control system.

The whole machine is simple in structure, easy to adjust, and suitable for automatic capping of 5-30L drums.

2.Technical Parameters

3.Electrical Configuration

4.Working Process

① Capping (turntable type capping, positive capping into the capping groove, negative capping kicked back to the capping device)

② into the barrel (before entering the spinning cap, using a belt to clamp the barrel into the

barrel by barrel)

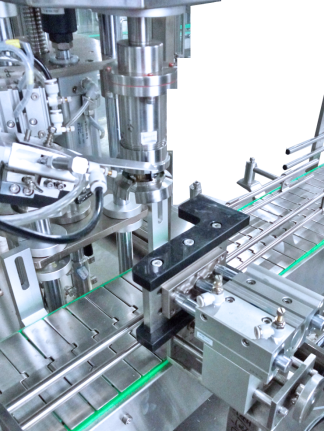

③ Grab the lid (using the mold to scrape the lid to the gripper under the three-jawed gripper

to grab the form of the lid, ready to rotate the lid)

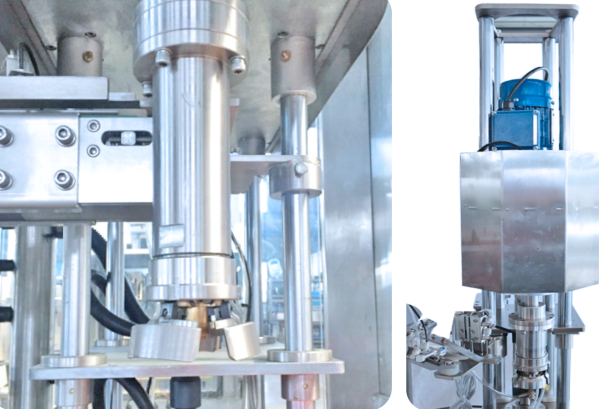

④ capping (using mold positioning form capping)

⑤ Discharge the barrel (finish the capping, barrel out of the equipment)
5.Applicable barrel type

Widely used in agrochemicals, fine chemicals, daily chemicals, fertilizers, oils and other industries 5-30L square, flat barrels automatic capping.

6.Advantage

6.1 The whole machine adopts French Schneider configuration, integrated electronic control system, more stable, reliable, safe, green, low energy consumption.

6.2Extra-large capping device, easy to adjust the capping, suitable for all kinds of universal cap type.

6.3 High precision: independent motor capping, adjustable torque without hurting the cap, ensuring constant capping torque and high pass rate.
