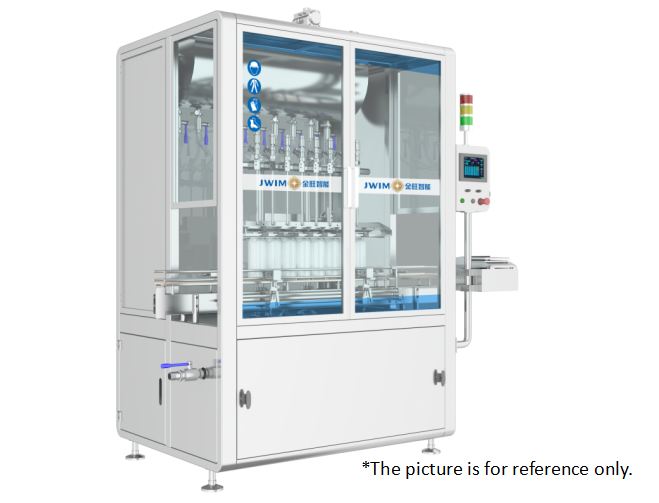

Pesticide Filling Machine with Inlet Dimensions Optimized for Smooth Material Feeding and Consistent Filling Performance

3. Technical Parameters

1	Filling Capacity	100ml bottle ≤3200BPH 500mlbottle ≤1500BPH 1000ml bottle ≤1000BPH *water as medium, Varies according to product size, packaging material, material characteristics, etc.
2	Applied Bottles	Round bottle:Φ40－95mm bottle height 80－230mm
3	Filling Precision	±1g(50-100mL) ±2g(100-500mL) ±3g(500-1000mL) *The measurement accuracy varies according to the characteristics of the material, the filling amount and the feeding device
4	Inlet Height	2300mm
5	Inlet Diameter	Φ35mm
6	Filling Nozzle’s outer dimension	Φ12mm
7	Minimum Bottle Neck	≥Φ16mm
8	Air Source	0.6-0.8MPa
9	Power Source	~380V 50Hz/0.7KW
10	External Dimension:	1695×970×2430mm(L×W×H)
11	Weight	About 500Kg









4. Electrical Configuration

S.N	Name	Brand
1	PLC	Schneider
2	Touch Screen	Schneider
3	Frequency Converter	Schneider
4	Counting photoelectric	SICK
5	Switching power supply	Schneider
6	Pressure Switch	SMC
7	Cylinder	FTEC
8	Solenoid Valve	FTEC
9	Button	Schneider
10	Alarm Light	Schneider
11	Breaker	Schneider



5.Working Process

6.Advantage

6.1 It is widely used in automatic filling of 50-1000mL bottles in veterinary medicine, fine chemical, daily chemical, fertilizer, oil and other industries.

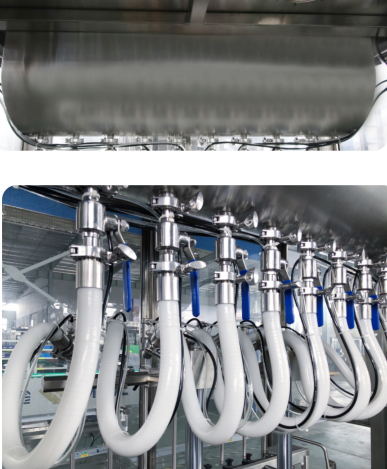

6.2 The material box is designed with a circular arc bottom, and the material is drained more thoroughly, and there is no dead corner for cleaning. The valve on the filling machine adopts a quick-installation design, which is convenient for disassembly and cleaning; the material box contains a cleaning ball, which is more convenient for cleaning.

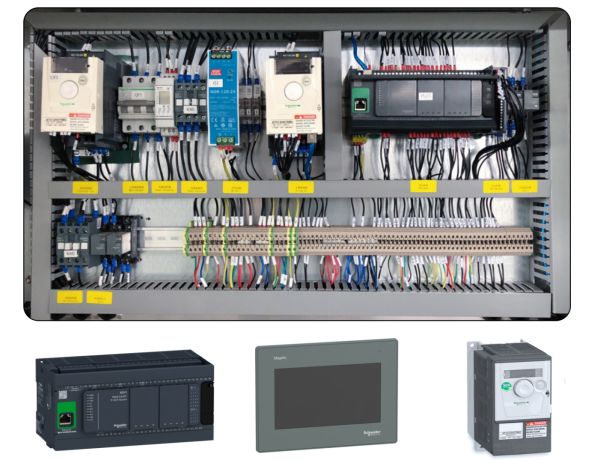

6.3 The Electric Control System Adopts Schneider configuration, Integrated Electric Control System, more stable and reliable, safe and green, low energy consumption.

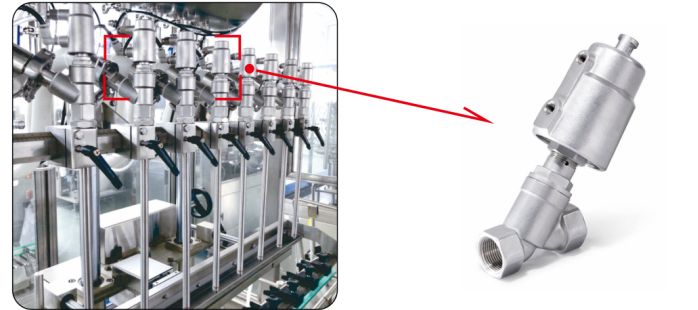

6.4. Using Qingdao ESG integral precision casting angle seat valve, the appearance is exquisite and exquisite, the long life is easy to install, the filling dose is stable, durable and reliable.

6.5. Electronic weighing system, dosage adjustment is completed with one button. (This function is optional)

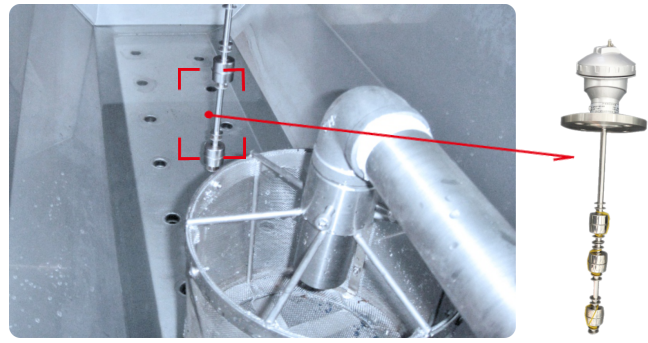

6.6. The feed pipe is equipped with a detachable filter-screen to prevent the filling valve from affecting the filling accuracy and the service life of the valve due to impurities. In addition to the normal working liquid level control for liquid level detection, high and low liquid level detection and sound and light alarm devices are added to prevent abnormal liquid level.
