CDP-12E Microcomputer In-line Anti-corrosion Gravity Filling Machine

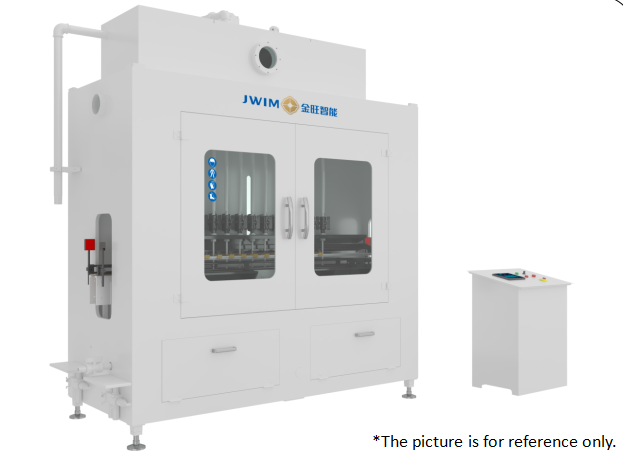

Introduction
CDP-12E microcomputer in-line anti-corrosion gravity filling machine is suitable for the filling the good fluidity materials. The whole machine is in-line structure. It adopts the metering and filling principle of keeping liquid level constant (constant speed) and timing mode, and realizes the precise filling. PLC control, touch-type man-machine interface, easy and intuitive operation of the whole machine.
Technical Parameters
| 1 |
Filling Capacity |
100mlbottle ≤5000BPH 500mlbottle ≤2800BPH
1000mlbottle ≤2000BPH
*water as medium, Varies according to product size, packaging material, material characteristics, etc.
|
| 2 |
Applied Bottles |
Round bottle:Φ40－95mm bottle height 80－230mm |
| 3 |
Filling Err |
±1g(50-200mL)±2g(200-500mL)±3g(500-1000mL)
*The measurement accuracy varies according to the characteristics of the material, the filling amount and the feeding device
|
| 4 |
Inlet Height |
2560mm |
| 5 |
Inlet Diameter |
Φ34mm |
| 6 |
Air Source |
0.6-0.8MPa |
| 7 |
Power Source |
～380V 50Hz/0.7KW |
| 8 |
External Dimension |
2835×880×2390mm(L×W×H) |
| 9 |
Weight |
～400Kg |
Electric Allocations
| S.N |
NAME |
BRAND |
|
| 1 |
CPU |
Schneider |
|
| 2 |
Touch Screen |
Schneide |
|
| 3 |
Frequency Converter |
Schneider |
|
| 4 |
Counting photoelectric |
SICK |
|
| 5 |
Switching power supply |
Schneider |
|
| 6 |
Pressure Switch |
SMC |
|
| 7 |
Cylinder |
FTEC |
|
| 8 |
Solenoid Valve |
FTEC |
|
| 9 |
Button |
Schneider |
|
| 10 |
Alarm Light |
Schneider |
 |
| 11 |
Breaker |
Schneider |
|
Working Process
Advanced Features
1. Good corrosion performance, suitable for automatic filling of corrosive liquid with good fluidity.

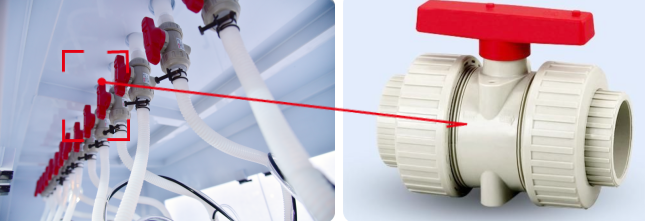

1.1. The external frame, material box, feed pipe, conveying frame, filling head, liquid level detection, valve, knife retaining seat and so on are made of anti-corrosion PP material with good anti-corrosion performance.
1.2. Liquid accumulation tank, cylinder block knife, actuator transition parts, filling head lifting parts, photoelectric bracket, threading pipe, exhaust pipe with Spray Teflon Treatment, anti-corrosion performance.
2.
Independent electrical box design, toughened glass door cover to seal the machine body, the air exhaust system above the filling head, its interface can be connected with the factory's induced air system to discharge waste gas generated during the filling process, which is safer and environmentally friendly.

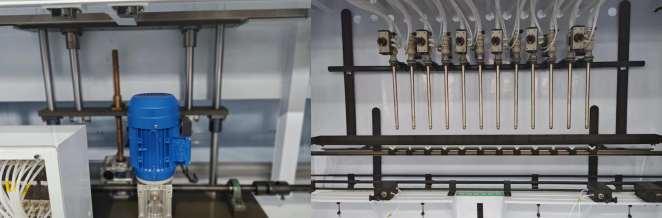

3.The filling head uses the air cylinder diving filling method, which can reduce the foam of the foaming material and prevent the contamination of the bottle mouth caused by the overflow of the material.

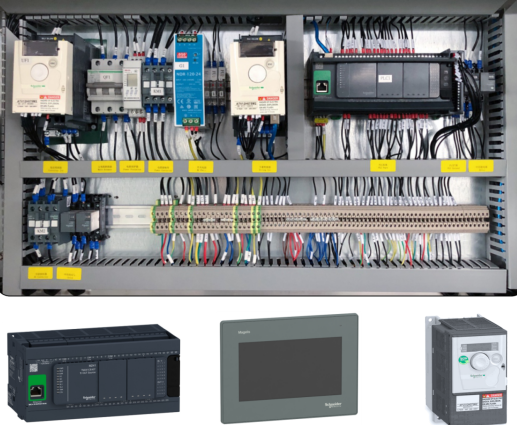

4.The Electric Control System Adopts Schneider configuration, Integrated Electric Control System, more stable and reliable, safe and green, low energy consumption.
5.The name of the Trachea and photoelectricity mark on the equipment, which is convenient for maintenance and repair.
6. Multi-channel intelligent detection system

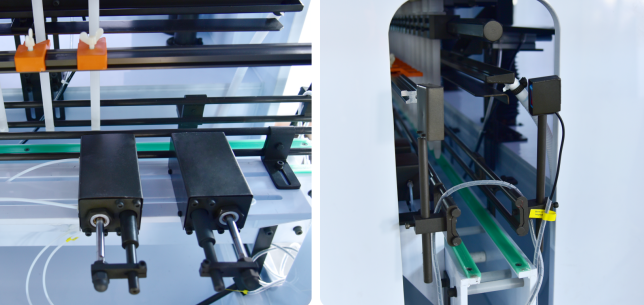

6.1.In addition to normal working liquid level control, high and low liquid level detection and sound and light alarm devices are added to prevent abnormal liquid level.
6.2.The air pressure of SMC in Japan is tested. When the air pressure is lower than the set value, the equipment alarms and stops automatically
