Pesticide Filling Machine Automatic Weight Filling Machine Featuring PLC Control and Touch Screen for Filling of Liquid Products

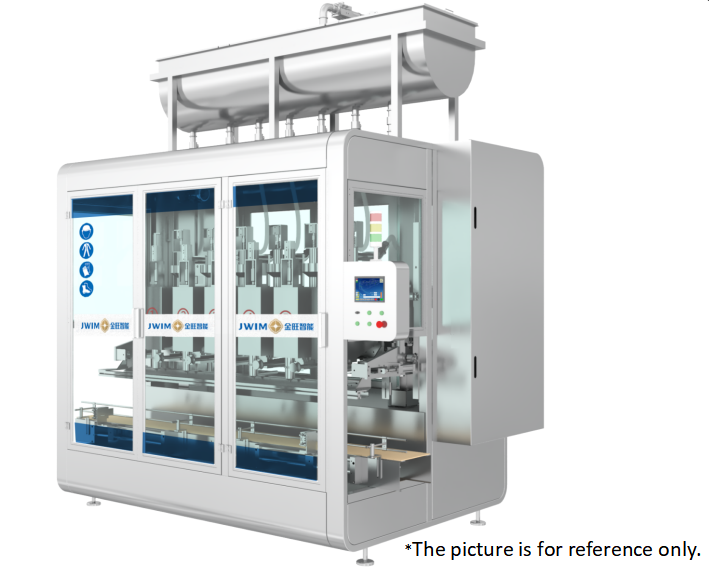

CZS20-6B Automatic Weight Filling Machine(Overhead Weighing)

1. Introduction

CZS20-6B automatic weight filling machine is the latest generation of improved weighing filling machine, suitable for liquid, emulsion, oil and other good fluidity, no foam packaging materials.

The whole machine is in-line structure, PLC control, touch man-machine interface, convenient and intuitive operation.

• Machine Dimension

•
  Technical Parameters

4. Electrical Configuration

1	Weighing Sensor	Mettler Toledo
2	PLC	Schneider
3	HMI	Schneider
4	Inverter	Schneider
5	Counting Sensor	SICK
6	Proximity Switch	Schneider
7	Power Switch	Schneider
8	Pressure Gauge	SMC
9	Cylinder	FTEC
10	Solenoid Valve	FTEC
11	Button	Schneider
12	Alarm Light	Schneider
13	Circuit Breaker	Schneider

5. Advantage

5.1. The control system uses France Schneider, the integrated control system is more stable, safe, green and low energy consumption, which is 20% lower than other brands.

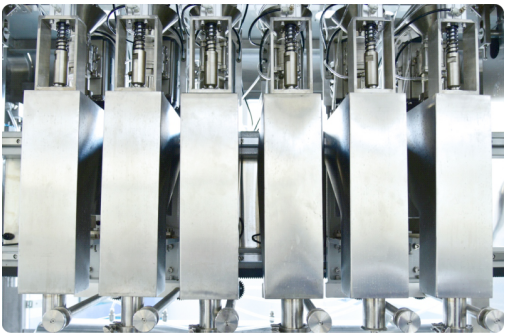

5.2. High precision: Each filling head is equipped with an independent weighing filling system (American TT METTLERTOLEDO weighing sensor) to ensure high precision of filling measurement.

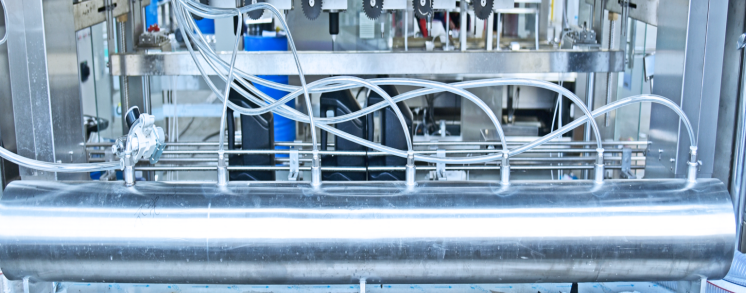

5.3. The whole machine is branched from one main material box to 6 sub-material boxes, and the filling is completed by weighing, so the production capacity is higher (compared with the method of filling while weighing).

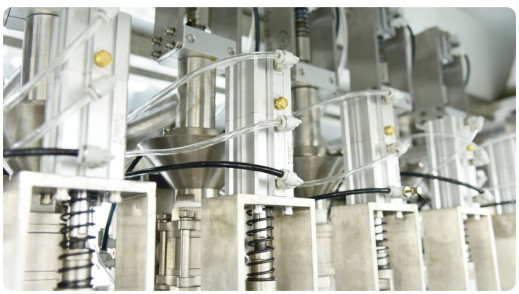

5.4. The filling head cylinder adopts multi-stage type, which can realize the change of filling volume in the filling process and improve the accuracy.

5.5. A separate air reservoir ensures the stability of the operation of the equipment.

5.6. The whole machine uses the frame of Stainless Steel 304 that with perfect anti-corrosion effect. The stainless steel cover and the toughened glass door prevent the dirty air during filling from polluting the environment. Meanwhile, dimension Φ120mm exhaust outlet reserved on the top of the filling lancers which connected to the induced draught system for exhausting gas.
