Pesticide Filling Machine Equipped with High Speed Rail Shape Components to Enhance Operational Efficiency and Stability

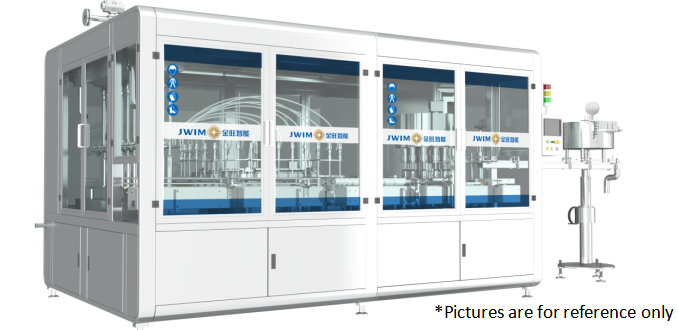

GX-16-12H Filling & Capping Machine

1.Introduction

GX-16-12H Filling & Capping Machine is made of SUS304 stainless steel, which has excellent anti-corrosion performance. The filling part adopts following type filling, servo motor drive, volumetric metering filling principle, which realizes the high precision of filling dose. PLC control, touch human-machine interface, the whole machine is convenient and intuitive to operate, and the performance reaches the highest level of similar models at home and abroad.

The key part of mechanical transmission of the host adopts protection switch, any abnormality in the running process of the machine will automatically stop and alarm to protect the equipment from damage and enhance the service life.

High-speed rail shape, high grade, strong visitation, enhance the company's brand influence

2.Technical Parameters

3.Electrical Configuration

4.Advantage

4.1 High speed: capacity of 10,000 bottles/hour, one line can replace the original 2 or more production lines.

4.2 Small space occupation rate: for the same capacity, the space occupation rate used can be reduced by 50% and the efficiency can be improved by 50%

4.3 The machine adopts automatic following submerged filling mechanism, the product is filled during the moving process, which greatly reduces the stopping time of the whole filling process, and the filling head automatically reaches into the bottle for filling, no material overflow.
4.4 Dataization: The whole line running status and data are presented in real time, which is clear at a glance, and the production data are dynamically displayed in real time, which is convenient for production management. The equipment is equipped with three-color light band, green running, blue standby, red shutdown alarm.
4.5 Quick-fit mold design, mold replacement without tools, and according to the different bottle type mold engraving logo, replacement of bottle specifications more convenient and quick, bottle type switching time is short.

4.6 High precision: the piston cylinder adopts 100ml capacity cylinder to ensure the filling precision of small dosage bottle.
4.7 High qualified rate of capping: the capping head adopts magnetic torque control design, the looseness and tightness of capping (capping torque) is adjustable and controllable, realizing that the torque of capping each bottle cap is the same size and the torque is stable. The capping pass rate is close to 100%. At the same time, there is no friction plate and other wearable consumables, reducing the cost of use. (This function is optional)

4.8 Equipped with online cap without aluminum foil detection device, no aluminum foil cap automatic detection and rejection, to ensure the qualified rate of finished products. (This function is optional)
4.9 The bottle feeding place is equipped with a switch for detecting inverted and jammed bottles, when there is an inverted or jammed bottle, the equipment will stop automatically to avoid damaging the twist or star wheel.

4.10 There are liquid collection tanks around the rack, which is convenient to collect and unify the sewage, and there is a dustproof cover on the top to meet the sanitary filling requirements.

4.11 Into and out of the bottle star wheel disk is equipped with overload protection, to protect the safety of equipment operation.

4.12 Door limit protection: the host is installed with a safety door door limit alarm device, normal production, open the door around, the host automatically alarm and shutdown. (This function is optional)

4.13 The whole machine electronic control system adopts French Schneider configuration, integrated electronic control system, more stable and reliable, safe, green, low energy consumption
