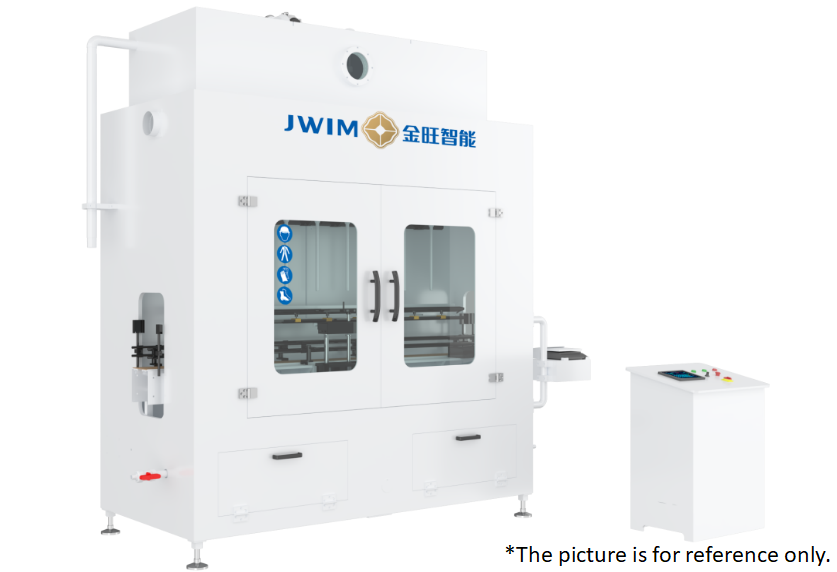

CDP30-6E Microcomputer Linear Filling Machine
1.Introduction
CDP30-6E Microcomputer Linear Filling Machine is suitable for packing material with good fluidity. It uses vertical structure with constant liquid level and time which realize the precise filling. It is controlled by the PLC, human interface and easy operation.
2.Machine Dimension
3.Technical Parameters
1 Filling Capacity 1000ml bottle ≤800BPH 5000mlbottle ≤350BPH
*water as medium, Varies according to product size, packaging material, material characteristics, etc.
2 Applied Bottles Round bottle:Φ40-95mm bottle height 80-230mm
Flat bottle:L:80-200mm W:80-140mm H:140-340mm
3 Filling Precision ±4g(1000ml);±10g(5000ml)
*The measurement accuracy varies according to the characteristics of the material, the filling amount and the feeding device
4 Inlet Height 2560mm
5 Inlet Diameter Φ35mm
6 Air Source 0.6-0.8MPa
7 Power Source ~380V 50Hz/0.2KW
8 External Dimension: 2300×1030×27550mm(L×W×H)
9 Weight About 650Kg
4.Electrical Configuration
S.N Name Brand Remarks
1 PLC Schneider
2 Touch Screen Schneider
3 Frequency Converter Schneider
4 Counting photoelectric SICK
5 Switching power supply Schneider
6 Pressure Switch SMC
7 Cylinder FTEC
8 Solenoid Valve FTEC
9 Button Schneider
10 Alarm Light Schneider
11 Breaker Schneider
6. Advantage
6.1. Good corrosion performance, suitable for automatic filling of corrosive liquid with good fluidity.
6.2. The external frame, material box, feed pipe, conveying frame, filling head, liquid level detection, valve, knife retaining seat and so on are made of anti-corrosion PP material with good anti-corrosion performance.
6.3. Liquid accumulation tank, cylinder block knife, actuator transition parts, filling head lifting parts, photoelectric bracket, threading pipe, exhaust pipe with Spray Teflon Treatment, anti-corrosion performance.
6.4. Independent electrical box design, toughened glass door cover to seal the machine body, the air exhaust system above the filling head, its interface can be connected with the factory's induced air system to discharge waste gas generated during the filling process, which is safer and environmentally friendly.
6.5. The filling head uses the air cylinder diving filling method, which can reduce the foam of the foaming material and prevent the contamination of the bottle mouth caused by the overflow of the materia
6.6. The Electric Control System Adopts Schneider configuration, Integrated Electric Control System, more stable and reliable, safe and green, low energy consumption.
6.7. The name of the Trachea and photo electricity mark on the equipment, which is convenient for maintenance and repair.
6.8. Multi-channel intelligent detection system
①In addition to normal working liquid level control, high and low liquid level detection and sound and light alarm devices are added to prevent abnormal liquid level.
②The air pressure of SMC in Japan is tested. When the air pressure is lower than the set value, the equipment alarms and stops automatically.
